261
PO
(261PO) Sand Filter Pump & Saltwater System with E.C.O. ENGLISH 7.5” X 10.3” PANTONE 295U 07/23/2014
English
SAVE THESE INSTRUCTIONS
Page 6
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If
your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before
inflating the pool liner top ring. The part numbers here onward refer to the parts depicted
in the Parts List section of this manual. To install, do the following:
1.
In a counter-clockwise motion unscrew plunger valve
union from the threaded strainer connector
(33)
(see
drawing 1).
Becarefulnottolosethesteprubber
washer
(30)
. Place the plunger valve on the ground in
a safe place.
2.
In a counter-clockwise motion unscrew the strainer nut
(31)
from the threaded connector
(33).
Leave the flat
washer
(32)
on the connector
(33)
.
3.
Install the strainer and plunger valve at the lower
position of pool outlet (marked "+").
Fromtheinsideof
the pool liner insert the connector
(33)
into one of the
pre-cut holes with the washer remaining on the
connector to be placed against the inside of the liner
wall.
4.
Beforeassembly,lubricatethethreadswithapetroleum
jelly. With the flat side of the strainer nut
(31)
facing
the outside wall of the liner in a clockwise motion screw
the strainer nut
(31)
back onto the threaded connector
(33) (see drawing 2)
.
5.
Fingertightenthestrainernut
(31)
onto the threaded
connector
(33)
.
6.
Grasptheplungervalveassembly.Makesurethestep
washer
(30)
is in place.
7.
In a clockwise motion screw the plunger valve union
back onto the threaded connector
(33) (see drawing 3)
.
8.
In a clockwise motion turn the plunger valve handle to
close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool
(see drawing 4)
.

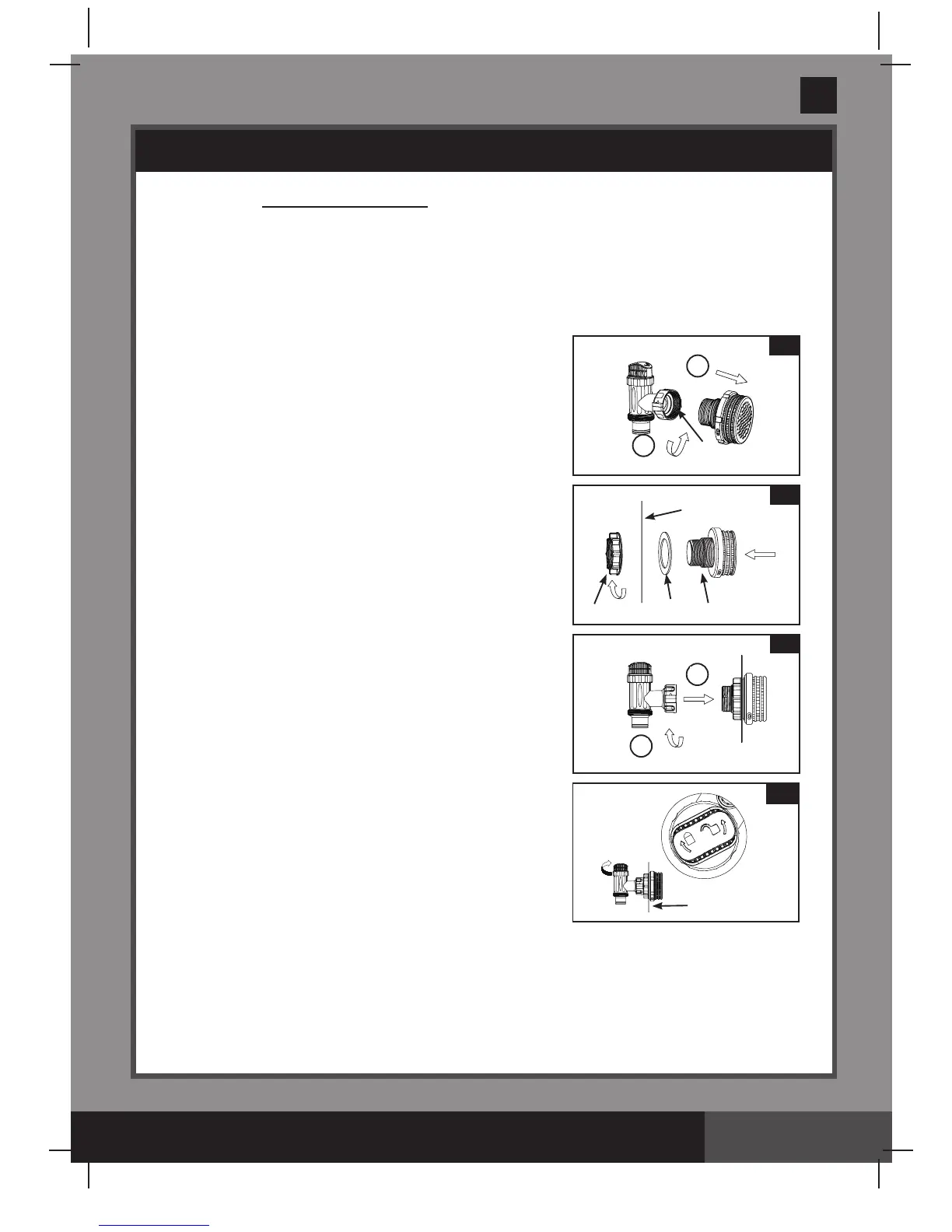

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP (optional)
1
2
3
1
2
32
33
INSIDE
LINER WALL
31
2
1
4
INSIDE
LINER WALL
30
Please visit
www.intexcorp.com
for the latest instructional video on the
installation and operation of this product.
