(261PO) Sand Filter Pump & Saltwater System with E.C.O. ENGLISH 7.5” X 10.3” PANTONE 295U 07/23/2014
English
SAVE THESE INSTRUCTIONS
Page 7

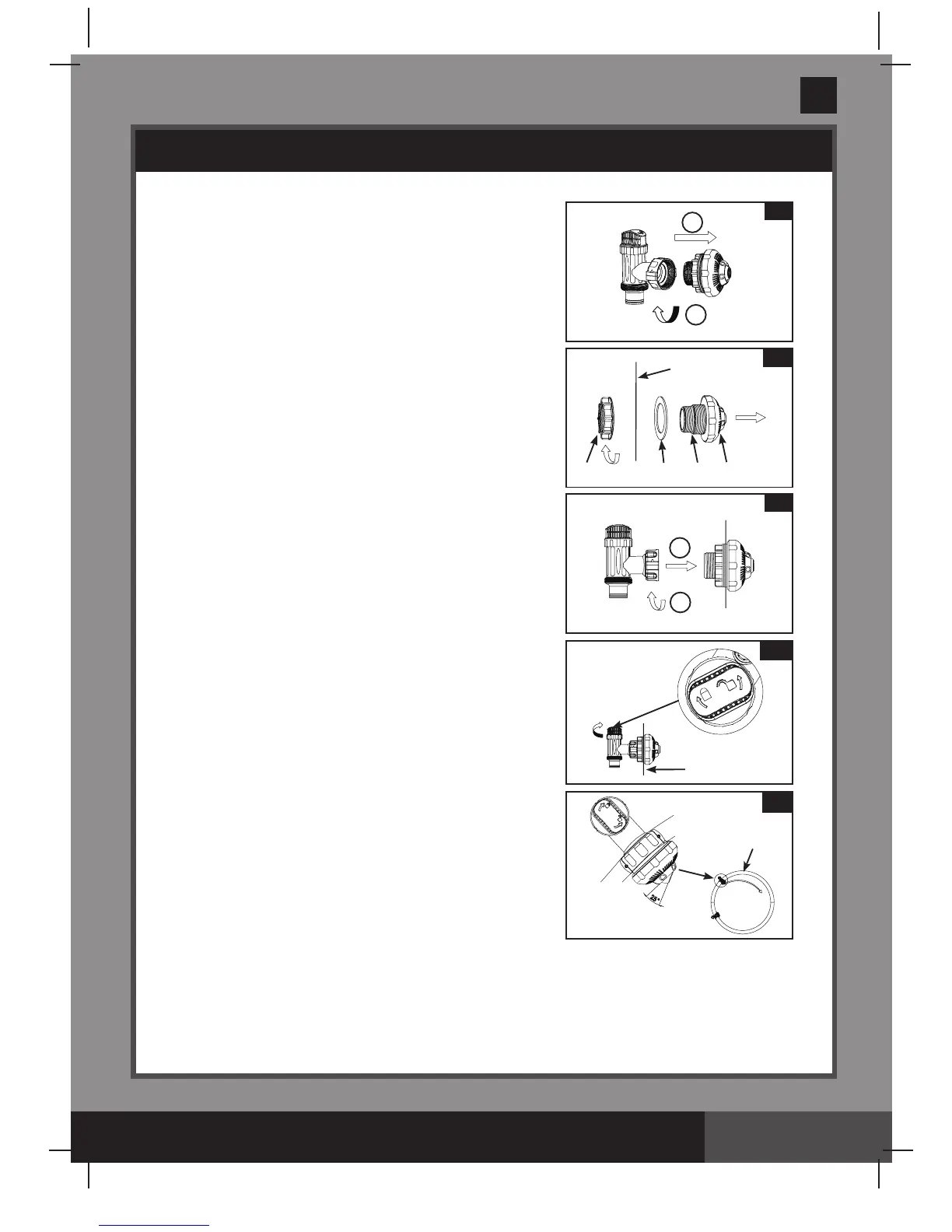

POOL INLET - NOZZLE & PLUNGER VALVE SETUP (optional)
1.
In a counter-clockwise motion unscrew plunger valve
union from the threaded strainer connector
(33)
(see
drawing 5).
Becarefulnottolosethesteprubber
washer
(30)
. Place the plunger valve on the ground in
a safe place.
2.
In a counter-clockwise motion unscrew the strainer
nut
(31)
from the threaded connector
(33).
Leave the
flat washer
(32)
on the connector
(33)
.
3.
Install the nozzle and plunger valve at the upper
position of pool inlet.
Fromtheinsideofthepoolliner
insert the connector
(33)
into one of the pre-cut holes
with the washer remaining on the connector to be
placed against the inside of the liner wall.
4.
Beforeassembly,lubricatethethreadswitha
petroleum jelly. With the flat side of the strainer nut
(31)
facing the outside wall of the liner in a clockwise
motion screw the strainer nut
(31)
back onto the
threaded connector
(33) (see drawing 6)
.
5.
Fingertightentheadjustablepoolinletnozzle
(34)
and the strainer nut
(31)
onto the threaded
connector
(33)
.
6.
Grasptheplungervalveassembly.Makesurethe
step washer
(30)
is in place.
7.
In a clockwise motion screw the plunger valve union
back onto the threaded connector
(33) (see
drawing 7)
.
8.
In a clockwise motion turn the plunger valve handle
to close position. Ensure the plunger valve is securely
closed. This will prevent water from flowing out during
filling of the pool
(see drawing 8)
.
9
. Adjust the direction of nozzle head pointing away
from the pool outlet for a better circulation result
(see
drawing 9)
.
10.
The pool liner is now ready to fill with water. Consult
the above-ground-pool owner’s manual for filling
instructions.
9
5
2
1
7
1
2
8
INSIDE
LINER WALL
6
32
33 34
INSIDE
LINER WALL
31
WATER
FLOW
POOL
