132A
SAVE THESE INSTRUCTIONS
English
(132) MODEL CS8220/8230 SALTWATER SYSTEM ENGLISH 7.5” X 10.3” PANTONE 295U 06/29/2013
Page 4

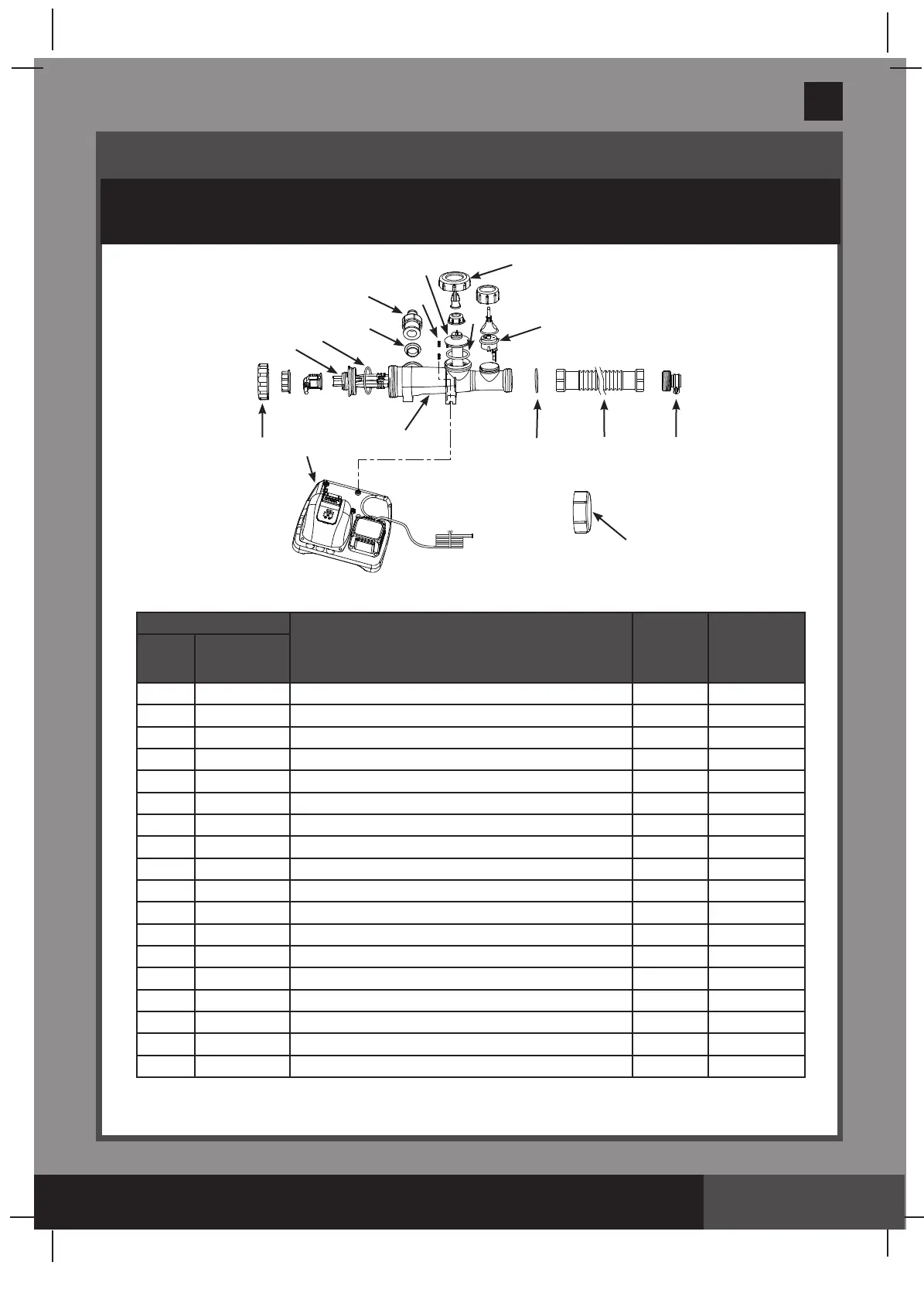

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
" * ": Optional.
When ordering parts, be sure to quote the model number and part numbers.
REF. NO.
DESCRIPTION QTY.
SPARE
PART
NO.
COMMON
PARTS
PARTS FOR CONNECTION
TO FILTER PUMPS WITH
1-1/4” (32MM) HOSE SIZE
1* ADAPTOR A WITH THREADED COLLAR 1 10849
2 O-RING A 1 10712
3 SCREW 2 11519
4 ELECTROLYTIC CELL (O-RING A INCLUDED) 1 11433
5 COPPER ELECTRODE 1 11234
6 TITANIUM ELECTRODE 1 11374
7 FLOW SENSOR 1 11460
8 CONNECTOR HOSE WITH THREADED FITTINGS 1 10720
9* THREADED ADAPTOR B 1 10722
10 CELL COVER 2 11131
11 ELECTROLYTIC CELL NUT 1 11432
12 L-SHAPE O-RING 1 11228
13 COPPER ELECTRODE NUT 1 11488
14 CHLORINE TEST STRIPS 1 19635
15 COPPER TEST STRIPS 1 11254
16 TITANIUM ELECTRODE O-RING 1 11515
17 COPPER ELECTRODE O-RING 1 11440
18 CONTROL STATION 1 11680
1*
13
6
11
7
4
5
9*
8
10
2
12
3
16
18
17
To Next Page
