SETUP INSTRUCTIONS
1. Assemble the above-ground-pool (AGP) and its filter pump according to their installation
instructions.
2. Take the Saltwater System and its accessories out of the packaging.
3. Place the Saltwater System in line after the filter pump.
4. Connect the connector hose (8) to the Saltwater System inlet.
Connecting the system to pump and pool with 1-1/4” (32mm) connections/hoses:
The saltwater system features 1-1/2” (38mm) connections. It is accordingly supplied with
adaptors A (1) and B (9) for connecting to the small 1-1/4” (32mm) diameter connections/
hoses. Install as follows:

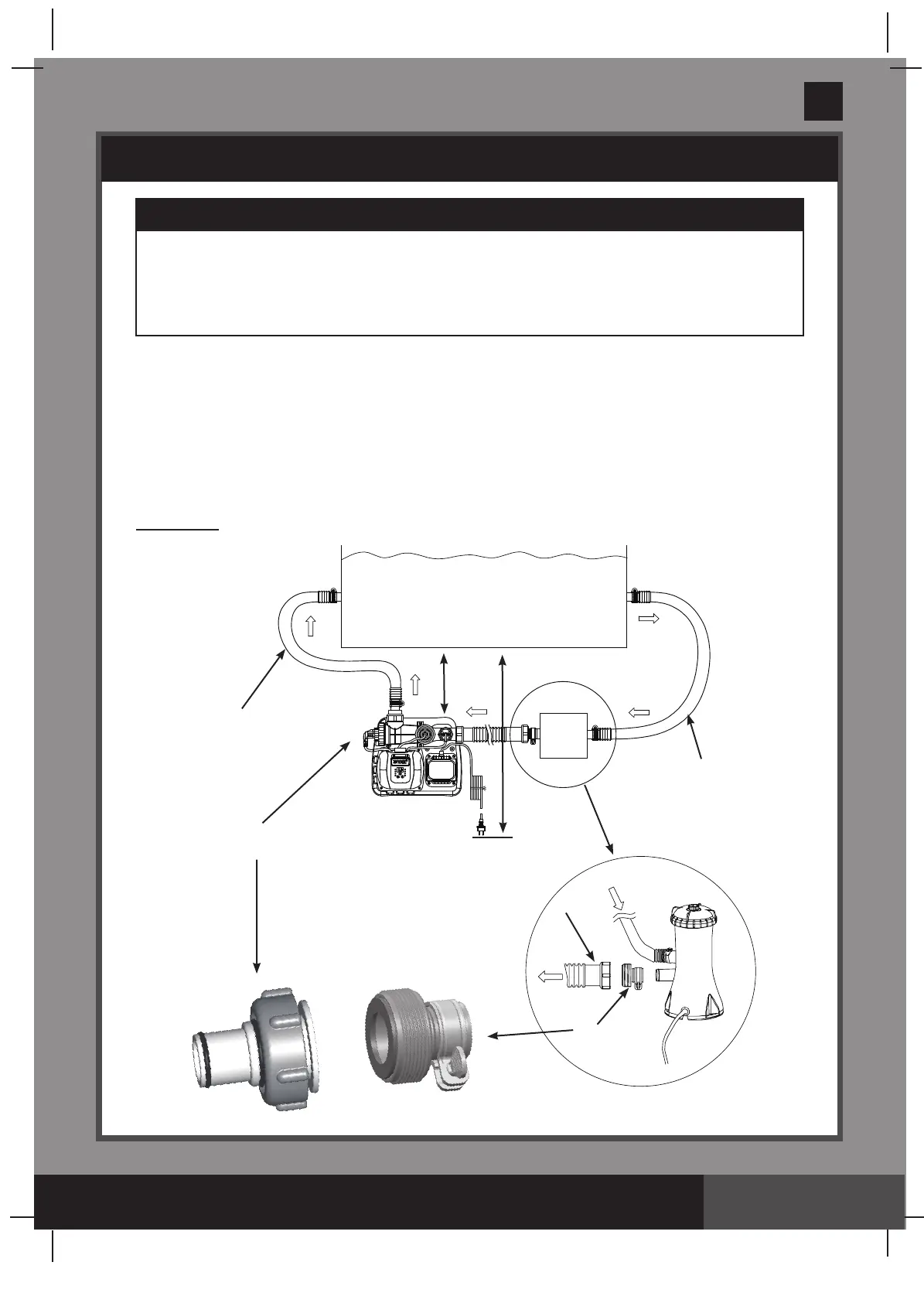

Drawing #1
IMPORTANT
• TheSaltwaterSystemrequiresaseparatefilterpump[700~4000gph(2650~15140
lph)] to drive the water and function properly.
• TheSaltwaterSystemmustbeinstalledasthelastpieceofpoolequipmentinthe
water return line to the pool as displayed in Drawing #1. This location extends the
life of the titanium plates.
WATER TO
POOL
WATER FROM
POOL
FILTER
PUMP
SWIMMING POOL
ID 1-1/4” (32mm)
HOSE
ID 1-1/4”
(32mm) HOSE
SALTWATER
SYSTEM
9
8
1
3.5M
2M
