Invacare®CarrollCSSeries™

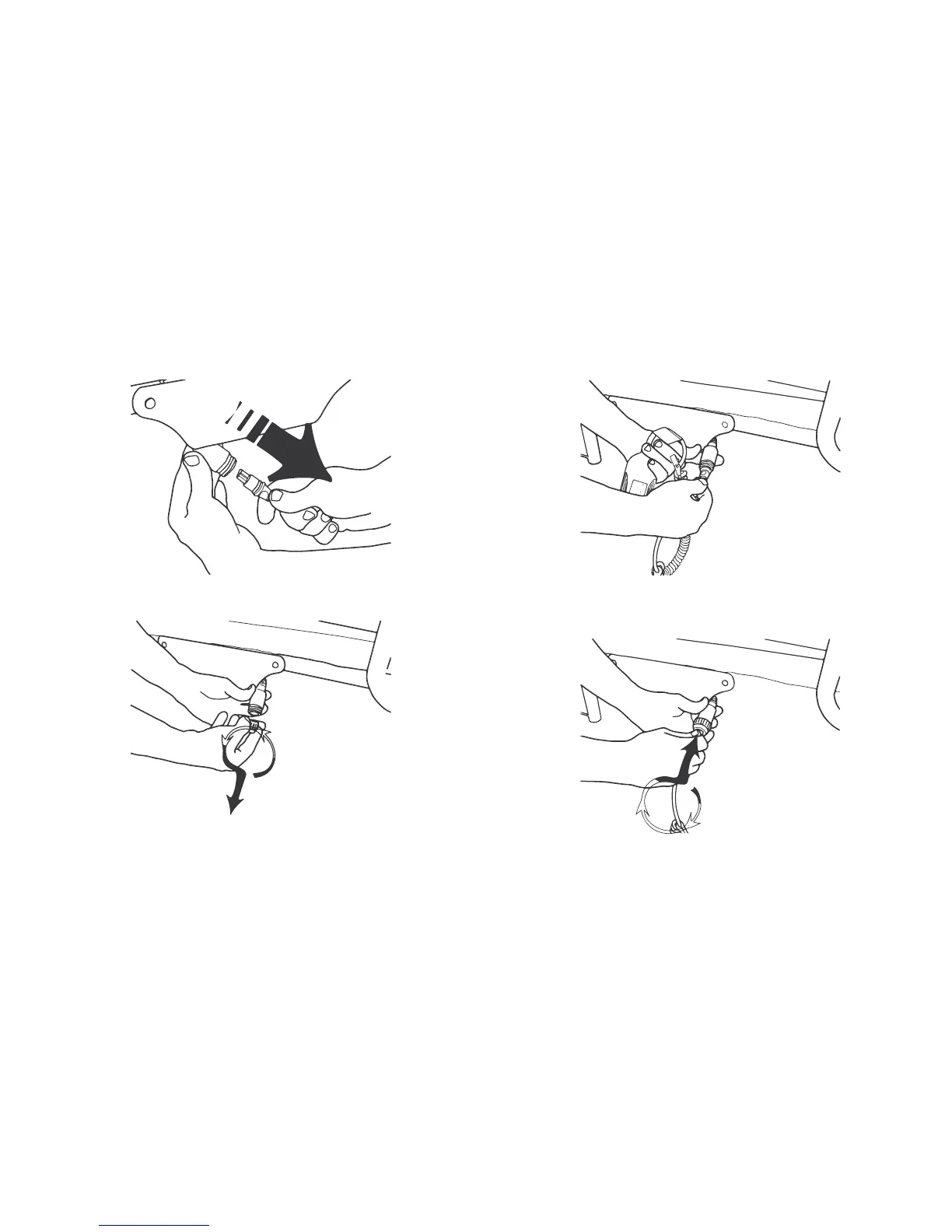

5.Tomovethependanttotheothersideofthebed,disconnectthe
mainpowerthenunscrewthecouplingcaponthependantcable.
6.RemovethecableendfromtheYcablehousing.
7.Ontheothersideofthebed,removethecapfromtheYcable
housing.Replacethecapontheothersideofthebed.
8.AlignarrowstheninsertthependantcableendintotheYcable
housing.
9.ScrewthecouplingcaptothethreadedYcablehousingend.
401153410-N~00
