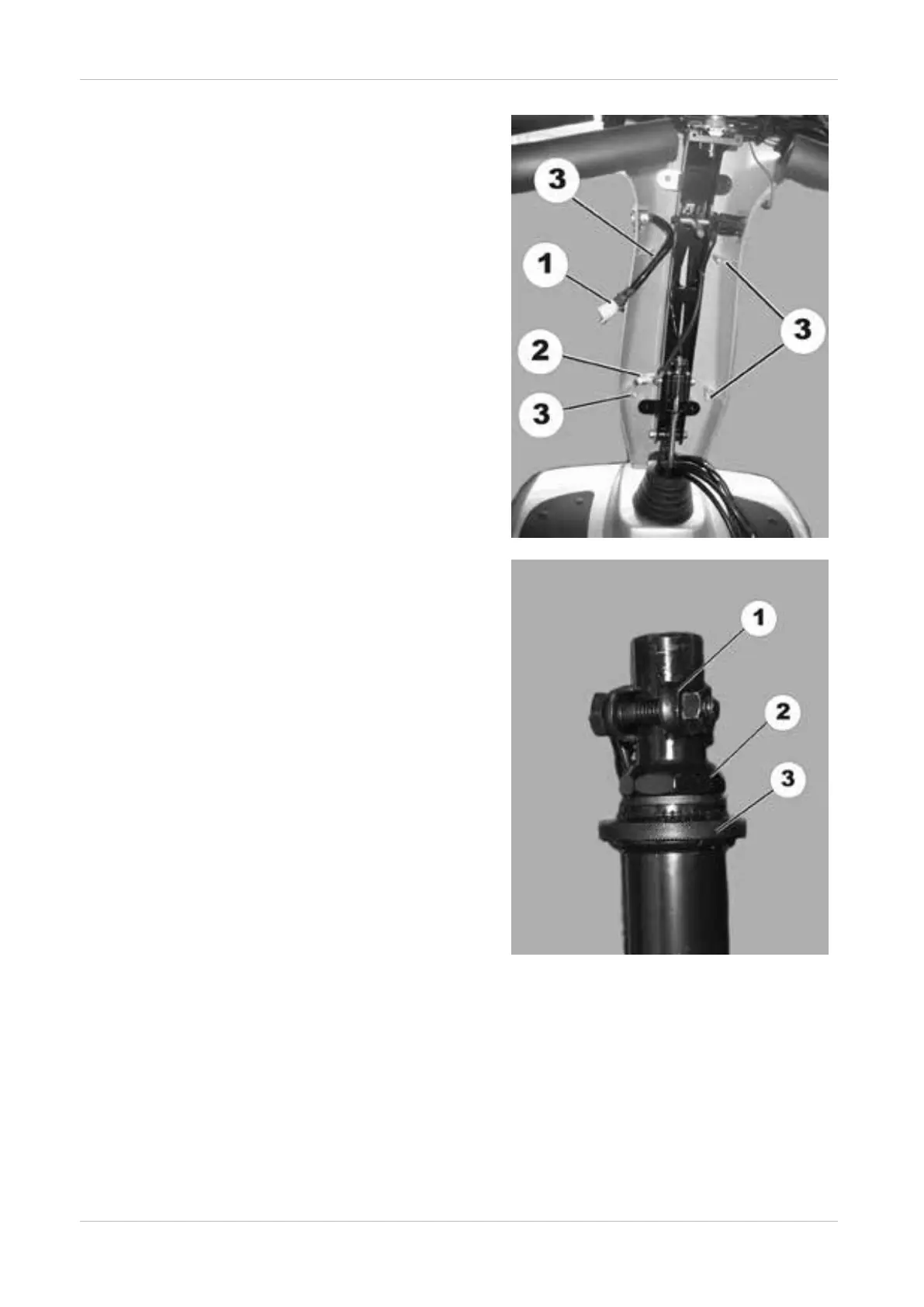

• Disconnect cable (1, 2) from wiring harness.
• Remove screws (3) on front steering column
cladding.
• Remove the front steering column cladding.
• Loosen the brake cable. (see chapter
entitled "Replacing brakes" on page 34).
• Unscrew screw at clamp (1).
• Unscrew fixing bolt for steering column and
remove.
• Pull steering column out upwards.
Replacing fork 3-wheel:
• Remove rubber mat in foot well.
• Loosen screws in chassis below mat.
• Remove chassis upwards.
• Dismantle front wheel (see chapter entitled
"Replacing front axle" on page 28).
