8 Accessories
8.1 Installing the windshield
Requirements:
• 13 mm open-ended wrench
• 14 mm open-ended wrench
• Remove the rear view mirror and the
stoppers of the plastic cover on the
handlebars.
• Remove the threaded bolts of the rear view
mirror holder.

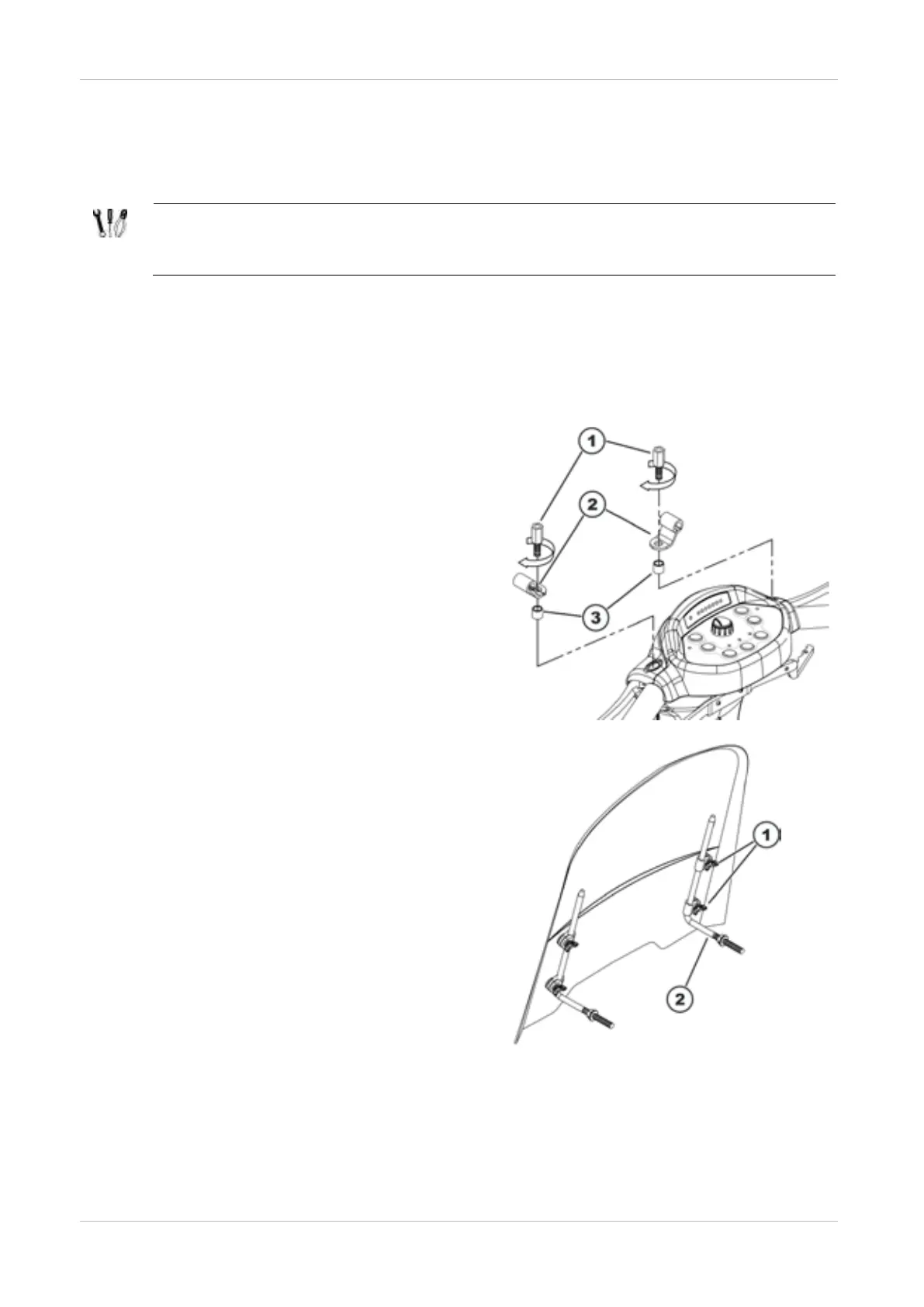

• Insert the threaded bolts (1) into the holes in
the brackets (2).
• Place the spacer sleeves (3) on the
threaded bolts.
• Screw the threaded bolts instead of the
mirror brackets into the holes provided for
this purpose, but don't tighten the bolts
completely yet. Make sure the brackets are
turned so they point upwards and outwards
towards the ends of the handlebars.
• Loosen the wing nuts (1).
• Insert the non-threaded ends of the
windshield brackets (2) into the fixtures from
below.
