56

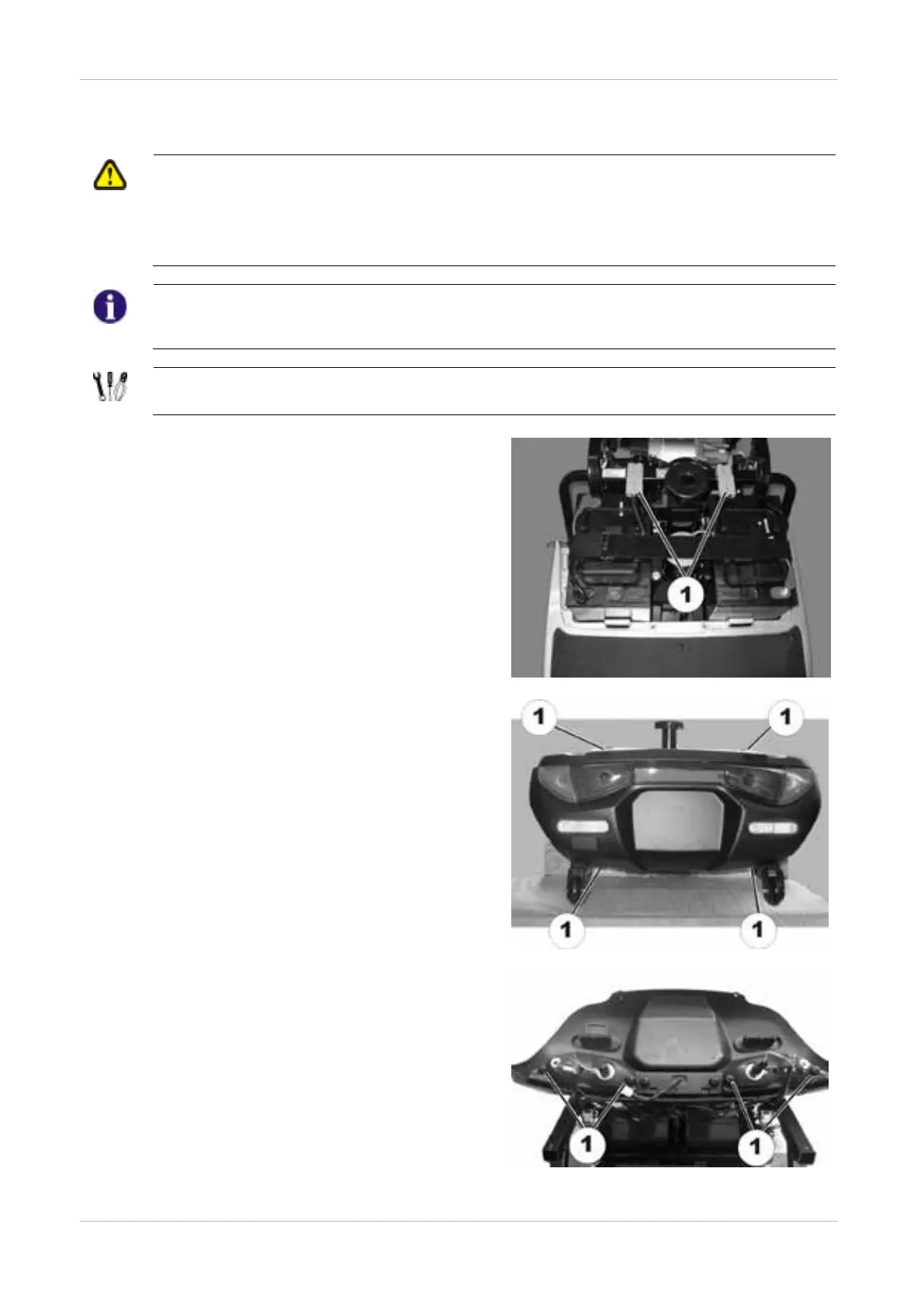

7.18 Replacing rear lights/direction indicators
ATTENTION!
Burn and scald hazard if power cable is short-circuited!
• Turn off the power completely before removing any power supply components of the electric
vehicle! Therefore take out the batteries.
• Avoid a bridging of the contacts during measurements on live electrical components!
NOTE:
When disassembling, note the position of small parts such as screws and washers. Put small
parts down so that they can be reassembled in the right sequence.
Requirements:
• Phillips screwdriver
• Remove the seat.
• Remove motor cover.
• Disconnect both battery plugs (1).
• Remove the bolt (1) on the rear panelling.
• Lift the rear panelling upwards.
• Remove screws (1) on rear light.
