7.13 Replacing bend speed reducer
ATTENTION! Risk of accident.
Accidental rolling can lead to accidents.
• Secure the scooter against rolling away.
NOTE:
When disassembling, note the position of small parts such as screws and washers. Put small
parts down so that they can be reassembled in the right sequence.
Requirements:
• Phillips screwdriver
• Open spanner, 32 mm.
• Remove motor cover.
• Separate battery cable.
•
Remove front and rear steering column
cladding, steering column and housing (see
chapter entitled "
Replacing steering
column/fork 3-wheel" on page 30).

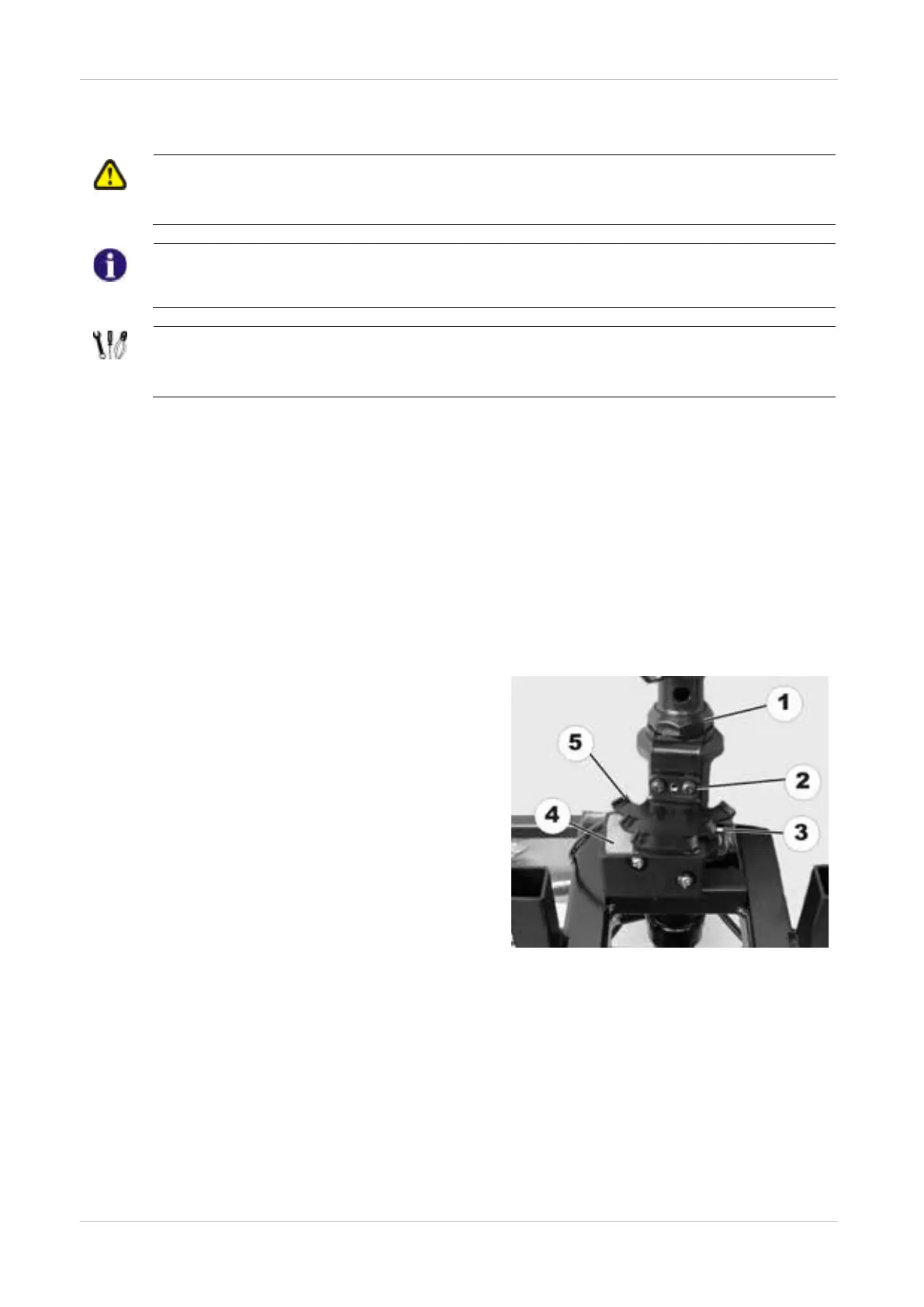

Replacing sensors (5) without mounting:
• Loosen screws.
• Replace sensor.
Replacing sensors (5) with mounting:
• Loosen fork bolt (1).
• Replace sensors (5) with mounting.
Replacing regulating unit (4):
• Loosen screws.
• Remove sensor (5).
• Loosen screws (3).
• Replace regulating unit (4).
