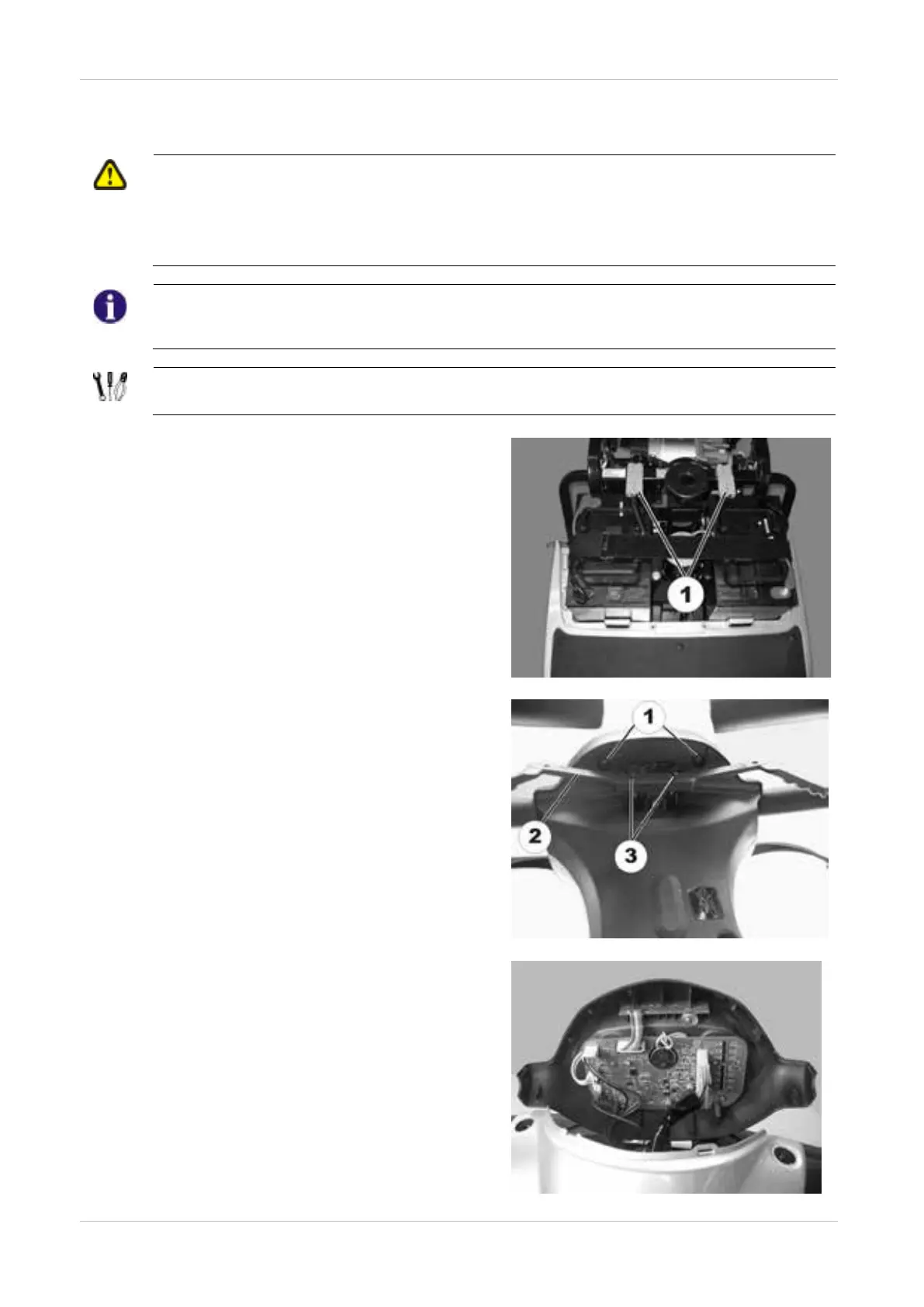

7.12 Replacing operating console
ATTENTION!
Burn and scald hazard if power cable is short-circuited!
• Turn off the power completely before removing any power supply components of the electric
vehicle! Therefore take out the batteries.
• Avoid a bridging of the contacts during measurements on live electrical components!
NOTE:
The plugs on the operating console cannot be wrongly connected because all plugs have a
different size and only fit in one socket.
Requirements:
• Phillips screwdriver
• Remove the seat.
• Remove motor cover.
• Disconnect battery cable (1).
• Remove screws (1) below operating
console.
• Remove operating console and fold
upwards.
• Remove screws (3) on drive lever (2) and
remove drive lever.
• Disconnect plug from operating console
circuit board.
• Replace operating console.
• Reconnect plug with circuit board on new
operating console.
