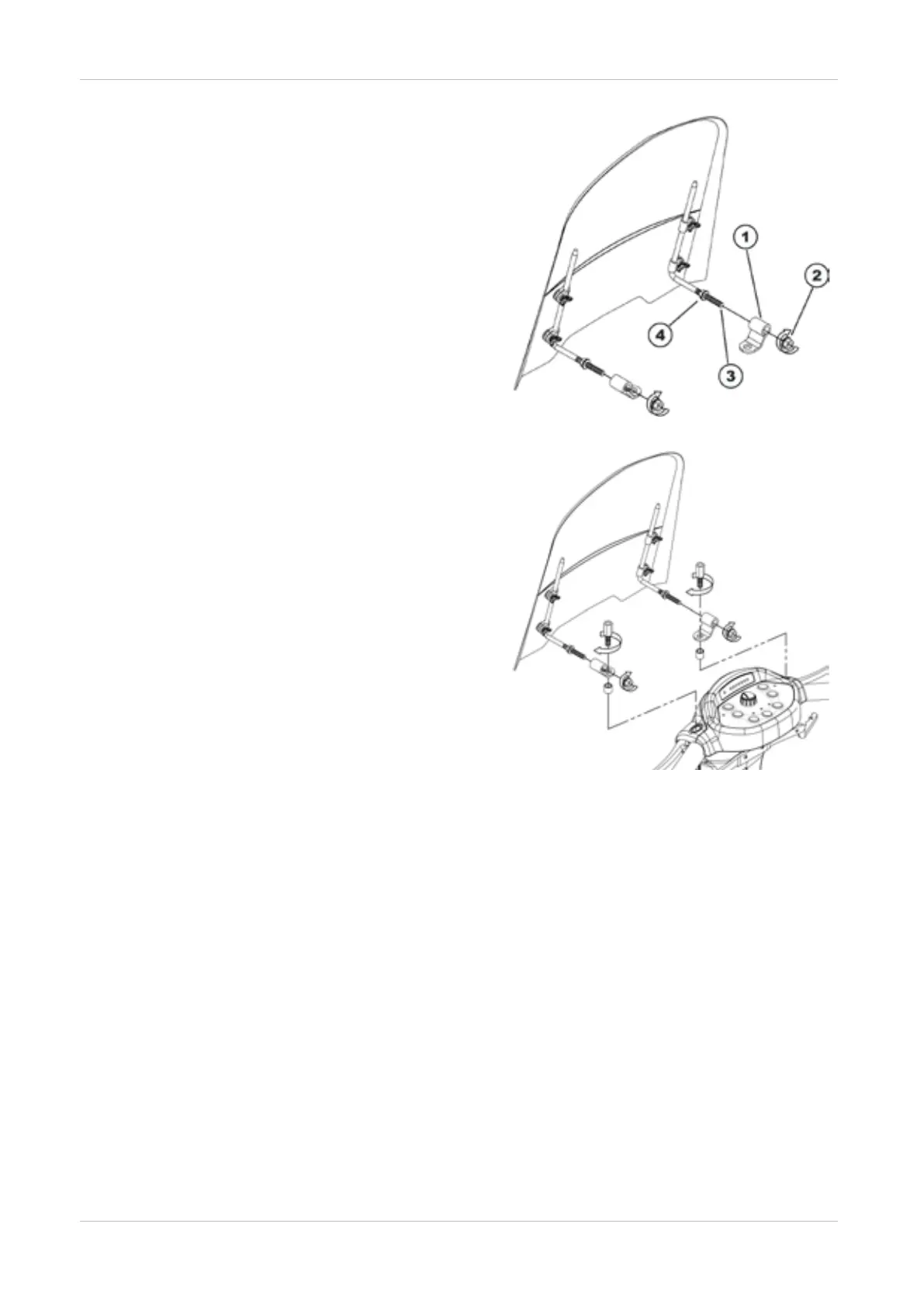

• Insert the threads of the windshield
mounting brackets (3) through the bracket
holders (1).
• Secure the windshield mounting brackets
with the self-locking nuts (2).
• Adjust the windshield using the nuts (2) and
(4) on both sides so that it is perpendicular
to the direction of travel .
• Adjust the windshield so that it is horizontal.
• Tighten the wing nuts.
• Now tighten the threaded bolts.
• Install the rear view mirrors again.
