Replacing steering link:
• Remove circlip (1) on steering link (2).
• Replace steering link.
• Adjust length of steering link using setting
screws (3).
Replacing steering rod:
• Remove circlip (4) on steering rod (5).
• Replace steering rod.

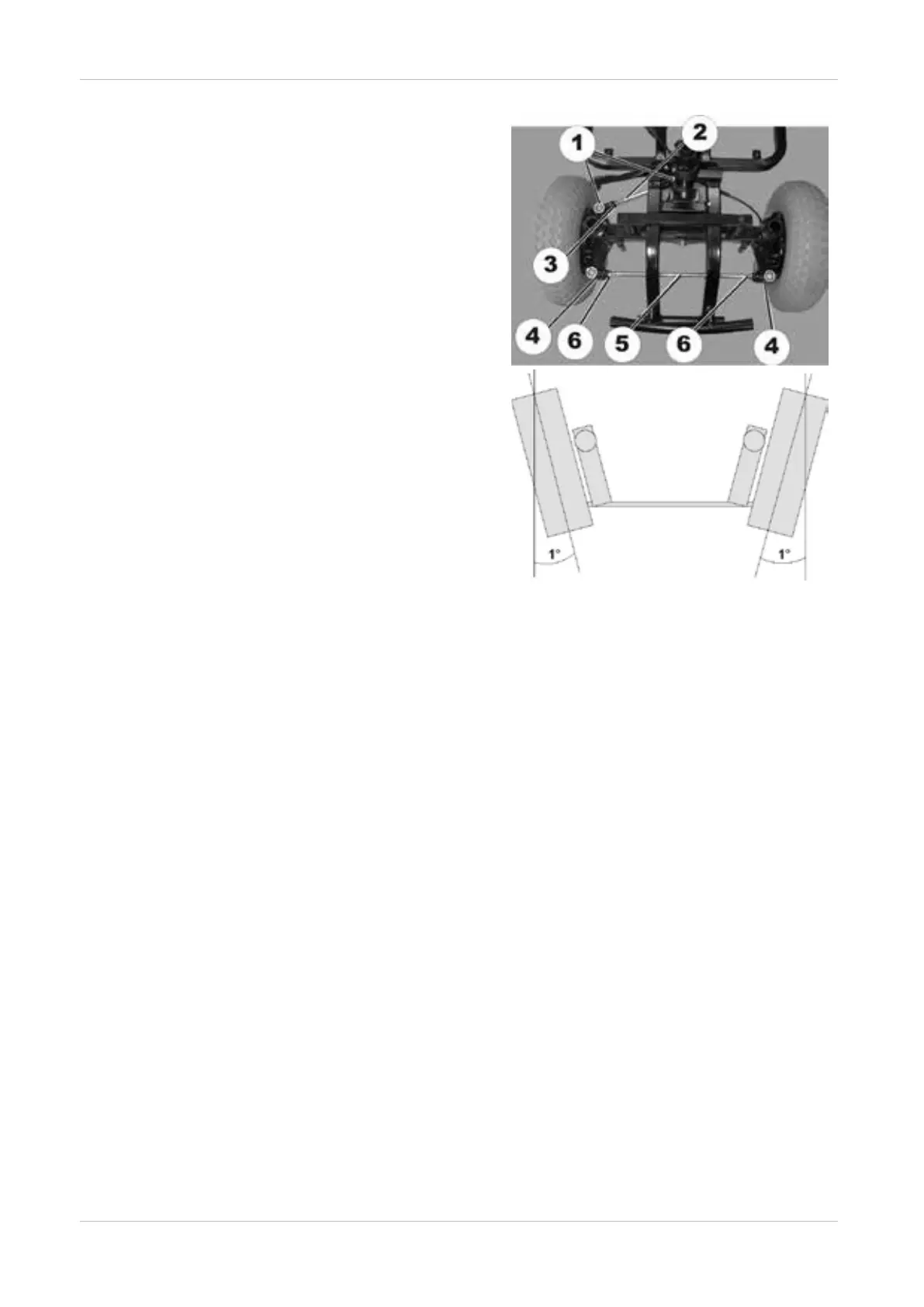

• Adjust tracking by 1° inwards using setting
screw (6). (See sketch).
• Reassembly of the steering linkage and/or
steering rod takes place in reverse order.
• Check function (trial run).
