PART ONE
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOREXPLANATION OF OXYGEN PURITY INDICATOR
EXPLANATION OF OXYGEN PURITY INDICATOR
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):LIGHTS (FIGURE 8):
LIGHTS (FIGURE 8):
GREEN LIGHT ( ) - Normal Operation
YELLOW LIGHT ( ) - Call Supplier IMMEDIATELY. You may
continue to use the concentrator unless instructed otherwise by your
supplier. Be certain that BACKUP OXYGEN is nearby.
RED LIGHT ( )- Total unit shutdown. Switch IMMEDIATELY
to BACKUP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT - with YELLOW LIGHT FLASHING - Call
Supplier IMMEDIATELY. Oxygen sensor malfunctioning; you may
continue to use the concentrator.
O
2

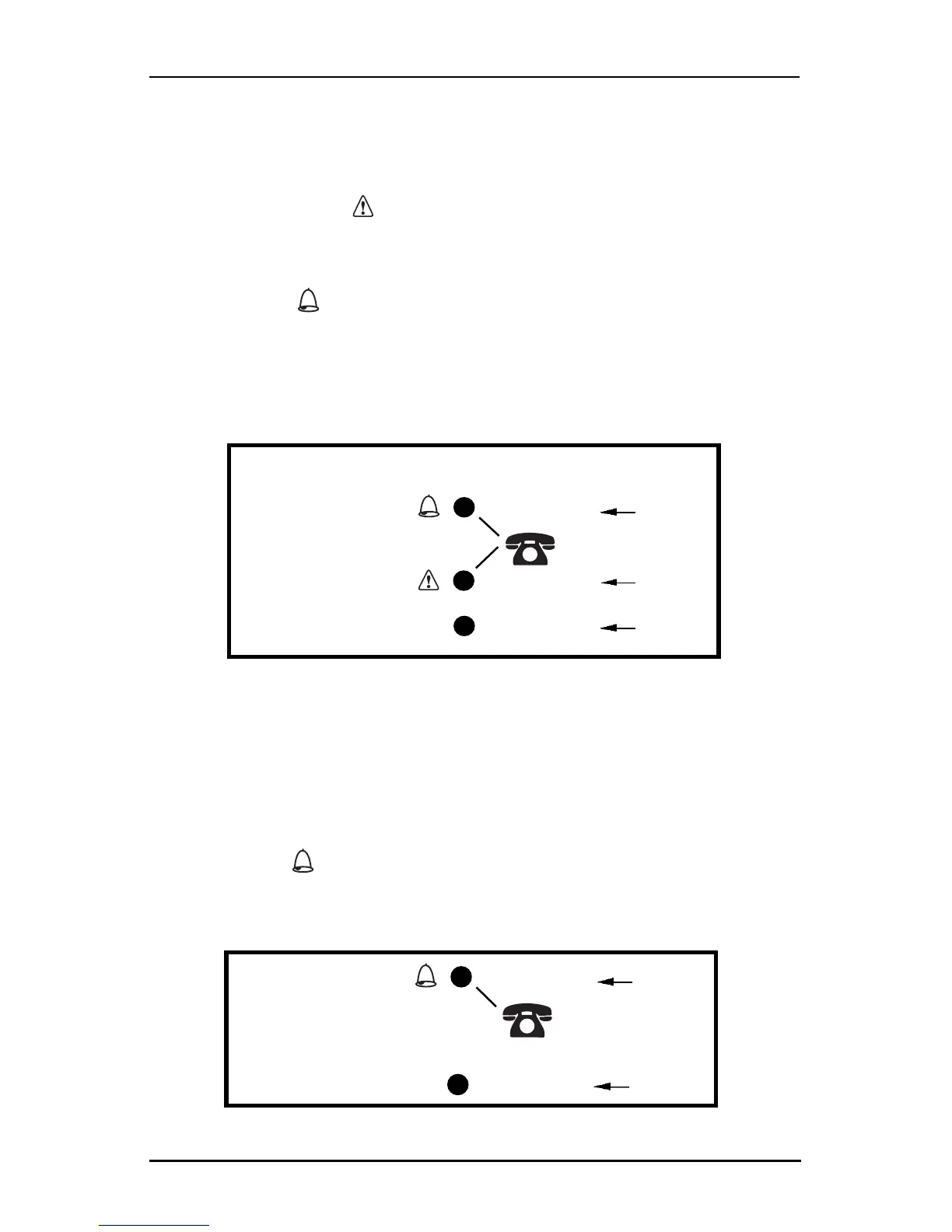

FIGURE 8 - O
2
DISPLAY CONTROL PANEL
Call Supplier
Normal
Below Normal
OXYGEN PURITY
RED
YELLOW
GREEN
O
2
Auto Shut - Down
Use Backup
INDICATORS- IF YOUR UNIT DOES NOT
FEATURE THE O
2
SENSOR
LX MODELS INDICATOR LIGHT EXPLANATION
(FIGURE 9):
RED LIGHT ( )- Total Unit Shut-Down. Switch IMMEDIATELY
to a BACK-UP OXYGEN supply. Call Supplier IMMEDIATELY.
GREEN LIGHT (I/O)- On/Off. System okay.
Call Supplier
Normal
RED
GREEN
Auto Shut - Down
Use Backup
I/O
FIGURE 9 - DISPLAY CONTROL PANEL
