PART TWO
PROCEDURE 3
COMPRESSOR OPERATION
REMOVING THE CYLINDER (FIGURE 4)
WARNING
DO NOT modify ANY connections on the HomeFill II
compressor. NEVER use tools of any kind to connect or
disconnect the cylinder and the compressor. Otherwise,
severe injury and/or damage may occur.
NOTE: Refer to the GENERAL WARNINGS and the HANDLING WARNINGS
in PROCEDURE 1 of this manual.
1. Press the compressor power switch to the OFF position.
2. Grasp the outer ring of the fillport connector and PULL DOWN.
3. Lift up on the cylinder to remove from the fillport connector.
4. Perform one (1) of the following steps:
A. If desired, fill another cylinder. Refer to the
COMPRESSOR
OPERATION CHECKLIST in this instruction sheet.
B. Place the fillport connector cover onto the fillport connector.
NOTE: The fillport connector cover should be used whenever cylinders are not
being filled.
NOTE: Fillport connector cover not shown for clarity.
➞
Cylinder
Power Switch
Fillport Connector
Outer Ring

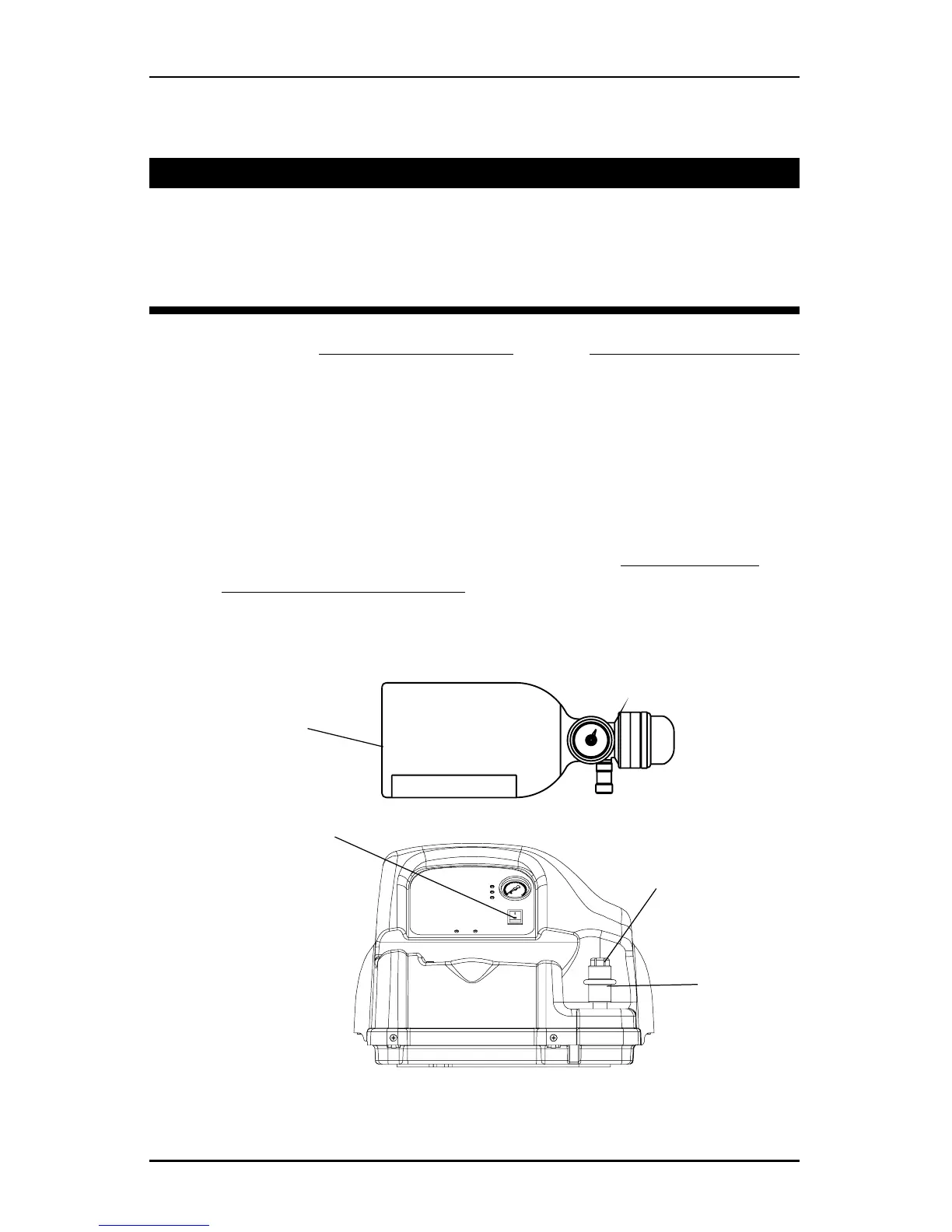

FIGURE 4 - REMOVING THE CYLINDER
