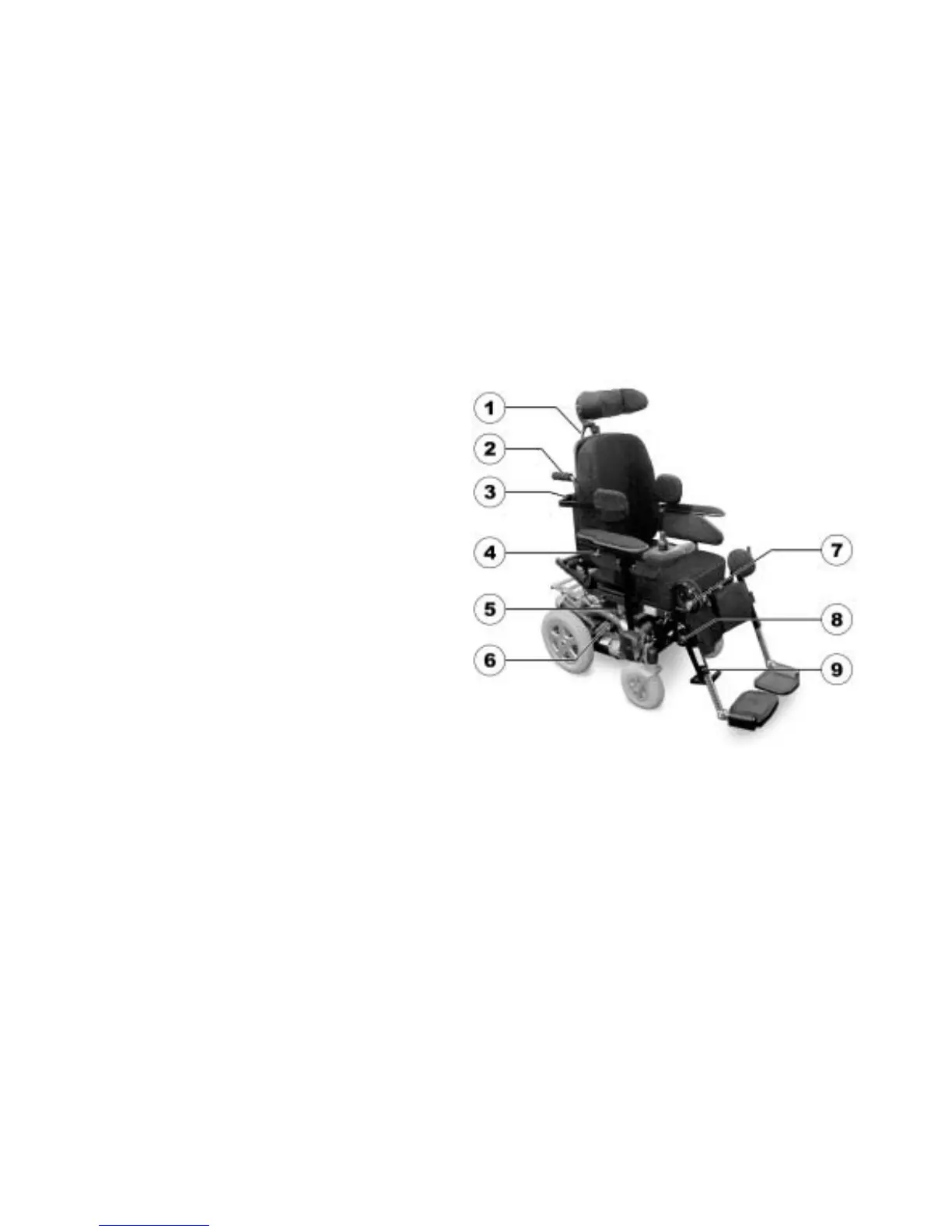

3.2 Topan with Laguna Seat
1) Clamping lever for adjusting the
headrest
2) Push handle
3) Fixation screw for adjusting the width of
the trunk supports
4) Fixation screw for adjusting the remote
to the length of the arm
5) Fixation screw for adjusting the height
of the remote
6) Declutching lever of the drive motors
7) Fixation screw for adjusting the angle
of the legrest
8) Fixation screw for adjusting the position
of the calf support
9) Fixation screw for adjusting the length
of the legrest
