8.1.4 Setting the height of the parallel sliding armrests
Requirements:
• Allen key 2 mm

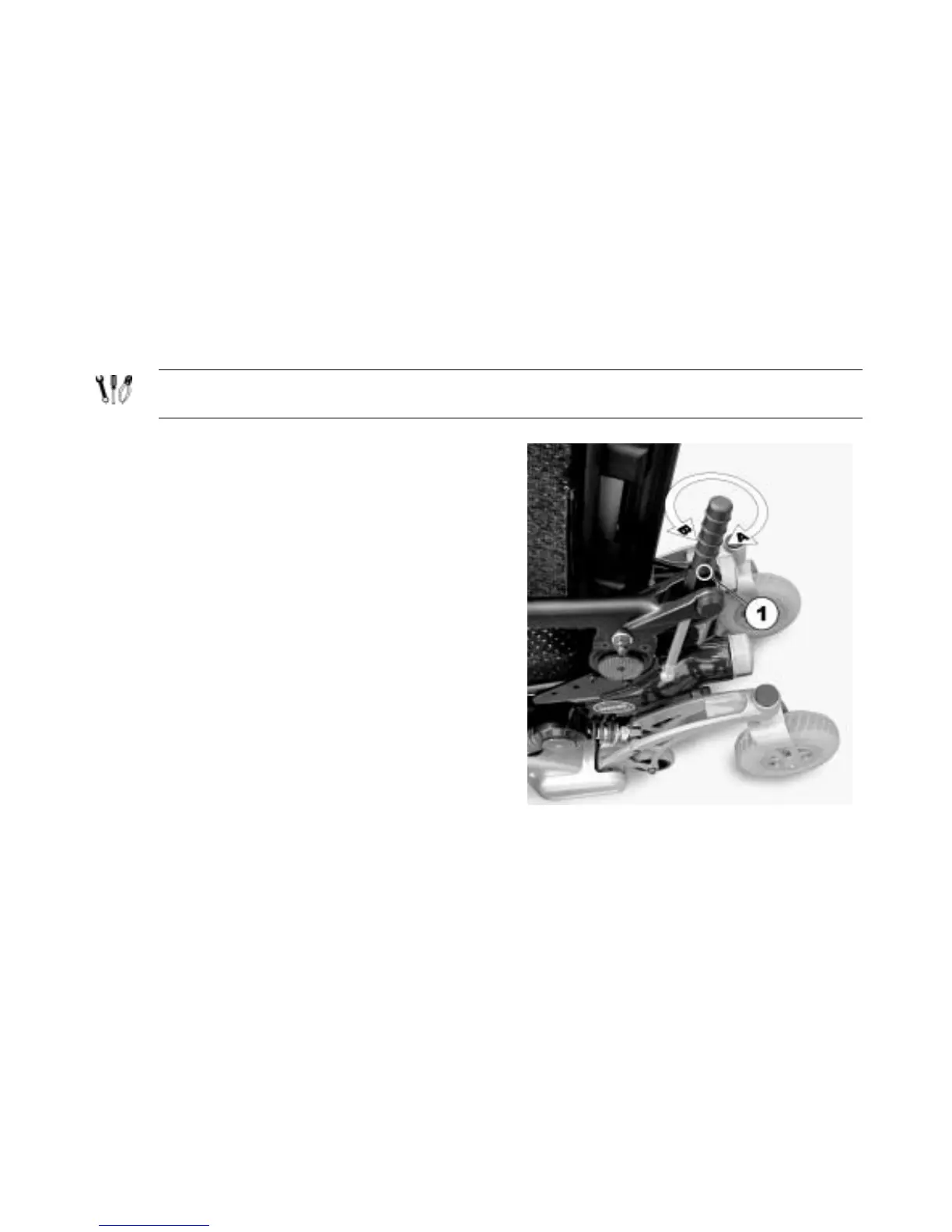

• Use the Allen key to loosen the screws (1)
2 mm on both sides of the spindle.
• Turn the spindle in a clockwise direction (A).
The armrest is raised.
• Turn the spindle in an anti-clockwise direction
(B). The armrest is lowered.
• Re-tighten the screws.
