8.1.5 Adjusting the angle of the armpad on the parallel sliding armrests
Requirements:
• Allen key 4 mm
• Open-end spanner 10 mm

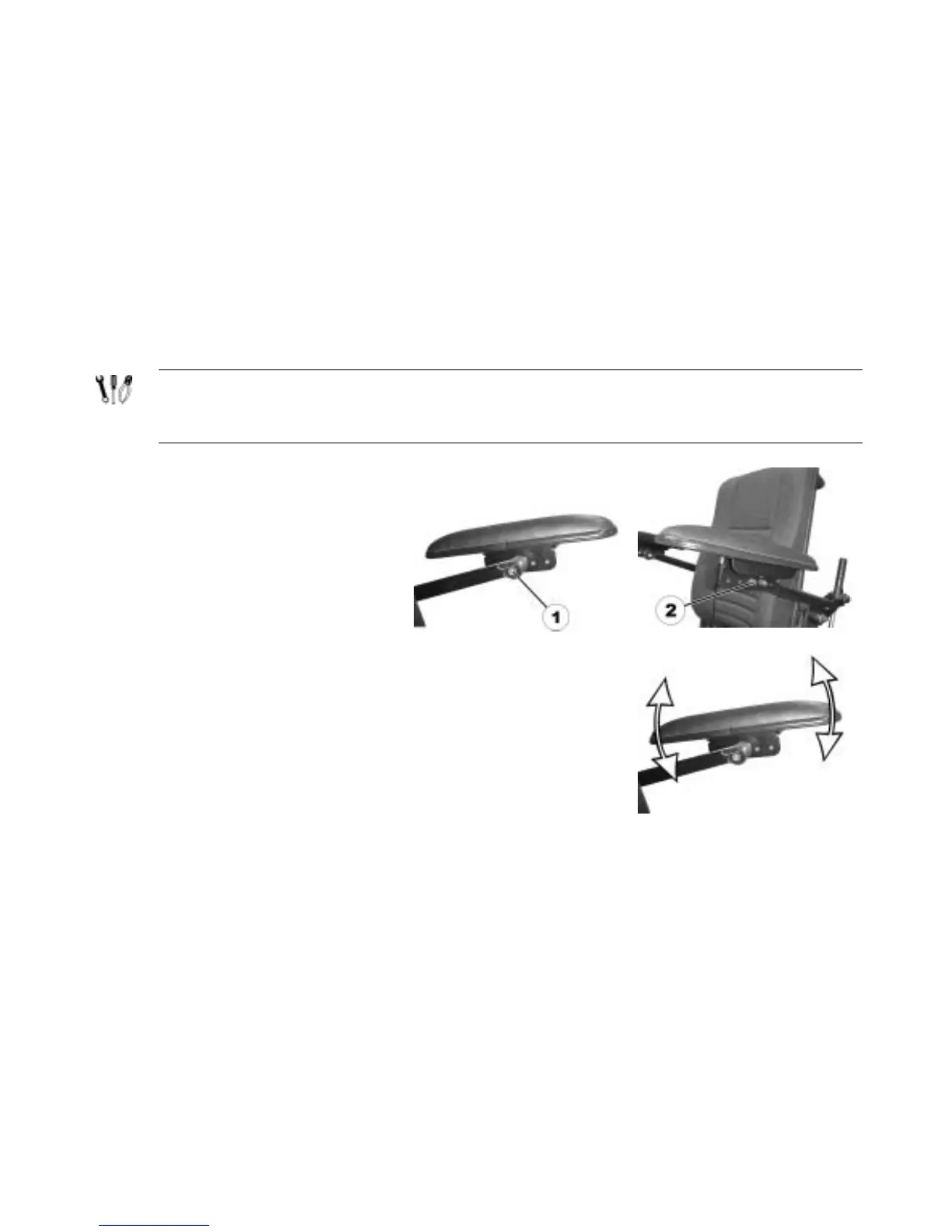

• Loosen the screw (1, on the
inner side of the armrest),
which allows adjustment of the
angle of the armpad, while
countering the nut (2, outer
side of the armrest) with the
open-end spanner, if
necessary.
• Adjust the angle of the armpad.
• Re-tighten the screw (1), while countering the nut (2).
