80

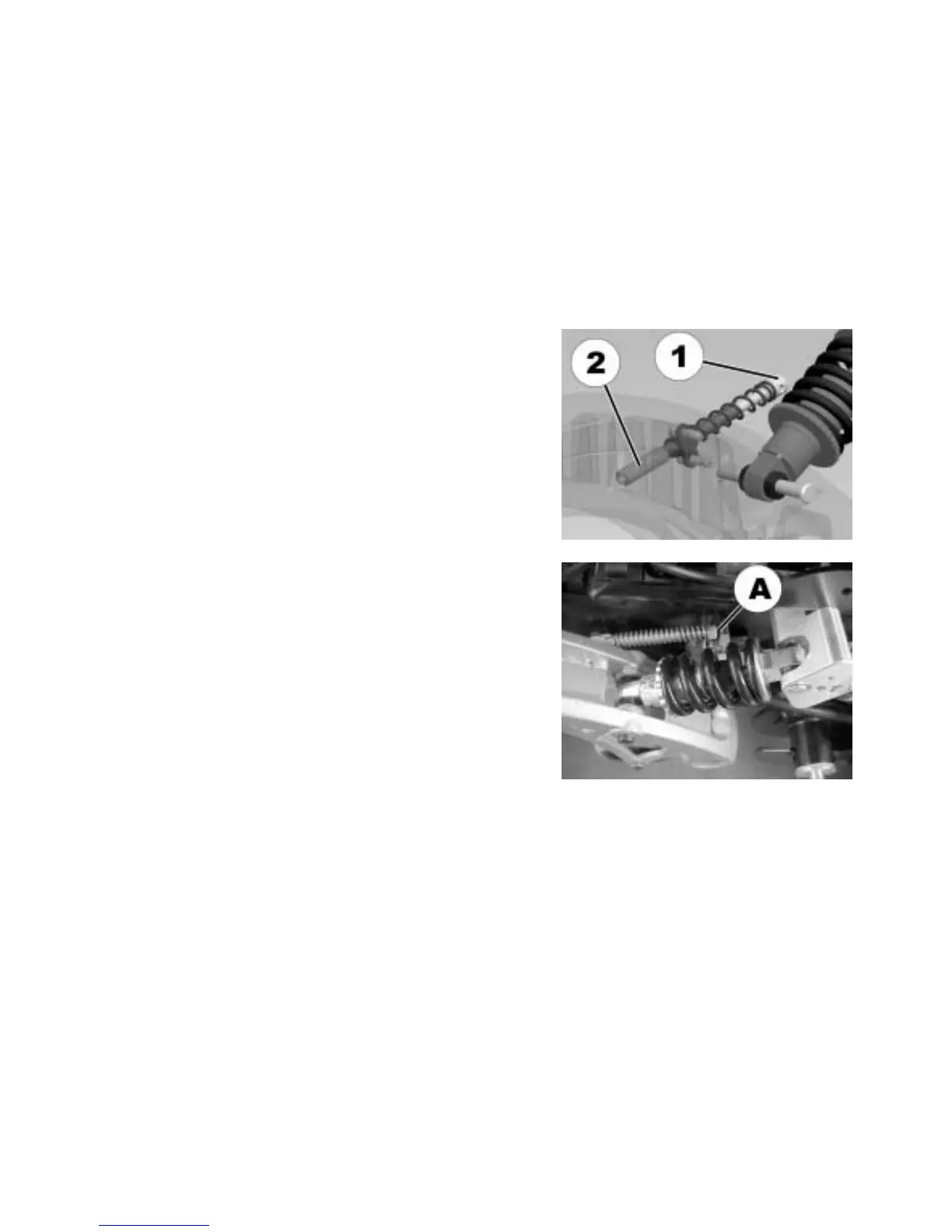

• The activation device comprises a spring loaded
bolt (1) and a elongated nut (2) with a slot in its end
for inserting a flat screwdriver.
• Check the width of the gap (A) with the feeler
gauge. The clearance between the bolt and the
activation device of the immobilisation mechanism
should be 0.6 mm.
• Pull the anti-tipper upwards on the side that is to be
checked. The anti-tipper must lock immediately and
completely. In case it does not lock, then the
immobilisation mechanism must be adjusted as
follows.
