73
Matrix Mono
Part 3 - Installaon and Field Sengs
Matrix Mono
72
Inventor Matrix Mono Engineering Data Book
Make sure no external pressure is applied to the terminal connectors.
When installing the ground fault circuit interrupter make sure that it is compatible with the inverter (resistant to high
frequency electrical noise) to avoid unnecessary opening of the ground fault circuit interrupter
This unit is equipped with an inverter. Installing a phase advancing capacitor not only reduce the power factor
improvement effect, but also may cause abnormal heating of the capacitor due to high frequency waves. Never
install a phase advancing capacitor as it could lead to an accident.
4.3 Guidance
Most field wiring on the unit is to be made on the terminal block inside the switch box. To gain access to the terminal
block, remove the switch box service panel.
Fix all cables using cable ties.
A dedicated power circuit is required for the backup electric heater.
Installation equipped with a domestic hot water tank (field supplied) requires a dedicated power circuit for the
immersion heater.
Secure the wiring in the order shown below:
Lay out the electrical wiring so that the front cover does not rise up when doing wiring work and attach the front
cover securely.
Follow the electric wiring diagrams for electrical wiring works. Refer to Figure 2-4.1, Figure 2-4.2 and Figure 2-4.3 in
part 2, 4 Wiring Diagram.
Install the wires and fix the cover firmly so that the cover may be fit in properly.
4.4 Wiring Overview
Figure 3-4.3: Wiring overview for 4/6kW models
Matrix Mono
73
Part 3 - Installation and Field Settings

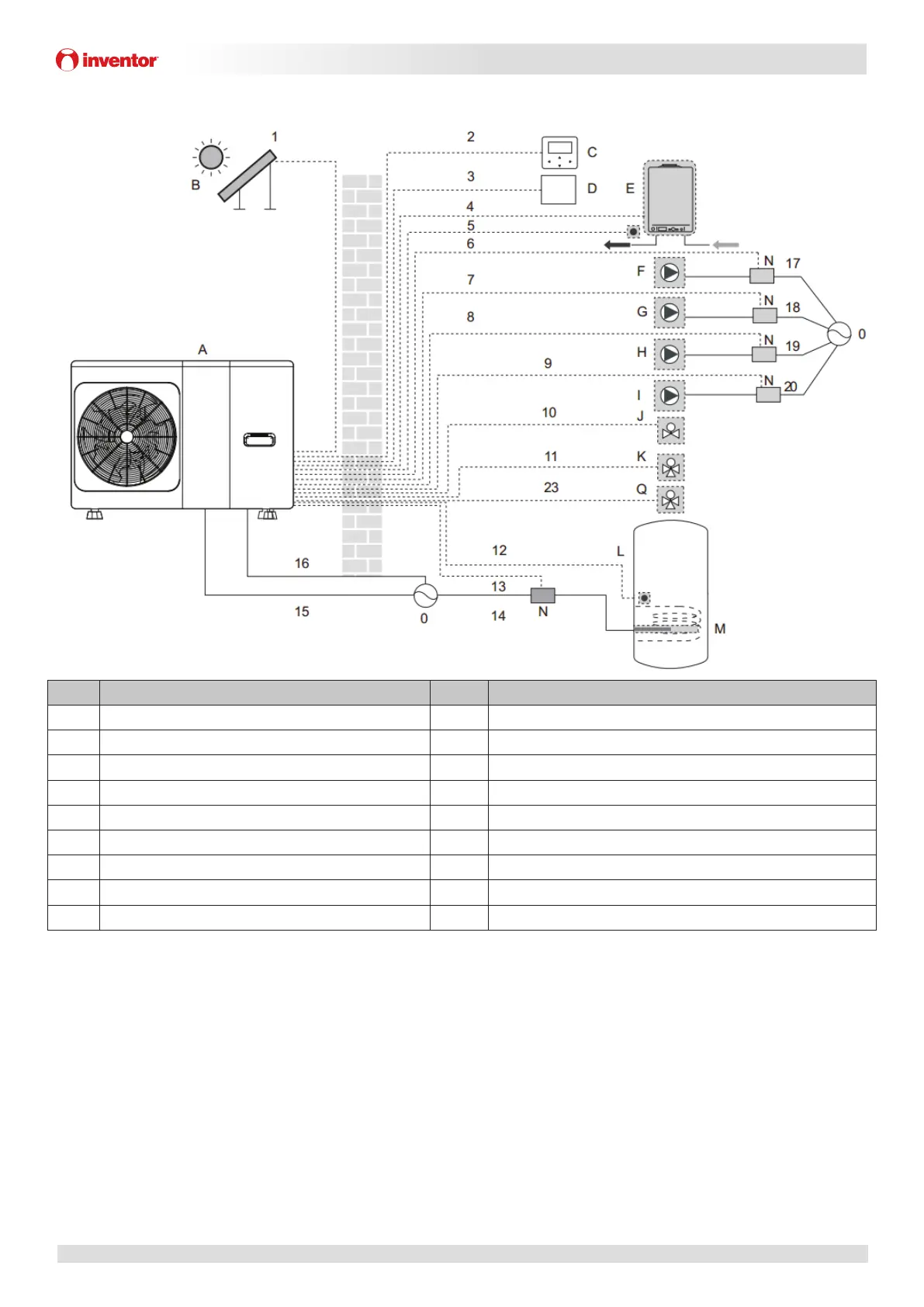

Figure 3-4.4: Wiring overview for 8/10/12/14/16kW models
Item Description Item Description
A Outdoor unit J SV2: 3-way valve (field supply)
B Solar energy kit (field supply) K SV1: 3-way valve for domestic hot water tank (field supply)
C User interface L Domestic hot water tank
D Room thermostat (field supply) M Booster heater
E Boiler (field supply) N Contactor
F P_s: Solar pump (field supply) O Power supply
G P_c: Mixing pump (field supply) P Backup heater
H P_o: Outside circulation pump (field supply) Q Zone2 SV3(3-way valve)
I P_d: DHW pump (field supply)
