Setting vertical angle of air ow
While the unit is on, use the SWING
button on remote control to set the direction
(vertical angle) of airow. Please refer to the
Remote Control Manual for details.
While the unit is on, use the SWING button on
remote control to set the direction (horizontal
angle) of airow. Please refer to the Remote
Control Manual for details.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your floor
or furnishings.
When using COOL or HEAT mode, setting the
louver at too vertical an angle can reduce the
performance of the unit due to restricted air
flow.
CAUTION
Do not put your ngers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury.
Fig. A
Fig. B
Setting Angle of Air Flow
Setting horizontal angle of air ow
•
To operate your unit manually:
1.
Locate the
MANUAL CONTROL button on
the right-hand side panel of the unit.
2.
Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode.
3.
Press the MANUAL CONTROL button again
to activate FORCED COOLING mode.
4.
Press the MANUAL CONTROL button a third
time to turn the unit off.
CAUTION
The manual button is intended for testing purposes
and emergency operation only. Please do not use this
function unless the remote control is lost and it is
absolutely necessary. To restore regular operation,
use the remote control to activate the unit. Unit must
be turned off before manual operation.
Manual Operation (without remote)
NOTE: Do not move louver by hand. This will
cause the louver to become out of sync. If this
occurs, turn off the unit and unplug it for a few
seconds, then restart the unit. This will reset the
louver.
Range
Manual control
button
AUTO COOL
Fig. C
Deflector
rod
Cleaning Your Indoor Unit
BEFORE CLEANING OR
MAINTENANCE
ALWAYS TURN OFF YOUR AIR CONDITIONER
SYSTEM AND DISCONNECT ITS POWER
SUPPLY BEFORE CLEANING OR MAINTENANCE.
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
•
Do not
use chemicals or chemically treated
cloths to clean the unit
•
Do not use benzene, paint thinner,
polishing powder or other solvents to clean
the unit. They can cause the plastic surface
to crack or deform.
•
Do not use water hotter than 40°C (104°F)
to clean the front panel. This can cause the
panel to deform or become discolored.

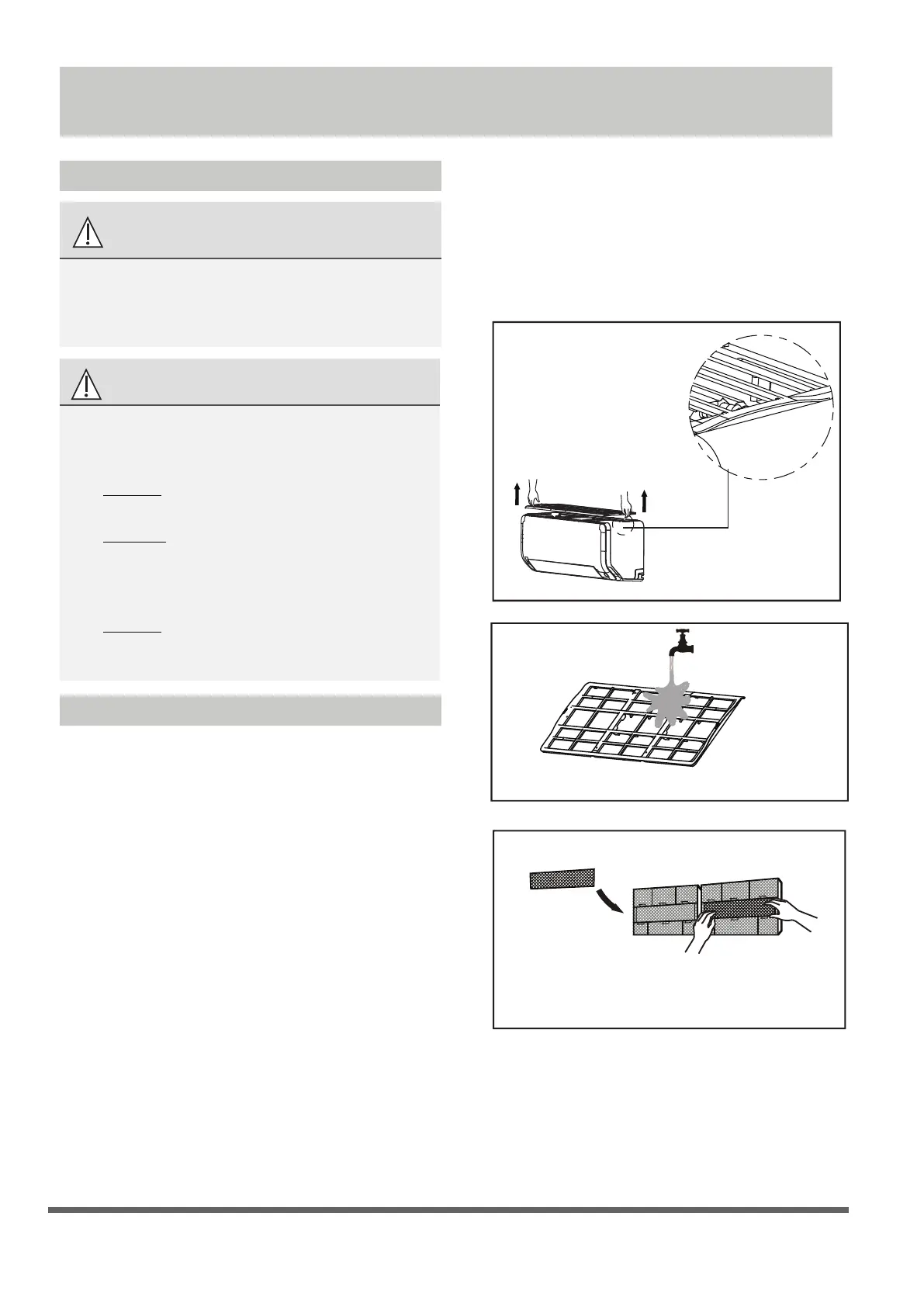

Cleaning Your Air Filter
A clogged air lter can reduce the cooling efciency
of your unit, can also make the air ow irregular
and too much noisy, so please clean the air lter
as often as necessary. Once the abnormal noise
of air ow is heard, please clean the air lter
immediately.
1.
The air lter is on the top of the air conditioner.
2. Hold both side of the top lter in the place
marked with “PULL”, then pull it upwards.
3.
If your lter has small air freshening lters,
unclip them from the larger lter. Clean these
air freshening lters with a hand-held vacuum.
4. Clean the large air lter with warm, soapy
water. Be sure to use a mild detergent.
5.
Rinse the lter with fresh water, then shake
off excess water.
6.
Dry it in a cool, dry place, and refrain from
exposing it to direct sunlight.
7.
When dry, re-clip the air freshening lter to
the larger lter, then install it back on the
indoor unit.
Hold both side of the top
lter in the place marked
with “PULL”, pull it upwards
Care and Maintenance
PULL
Remove air freshening lter from back of
larger lter(some units), clean with a hand-
held vacuum.
To Next Page
