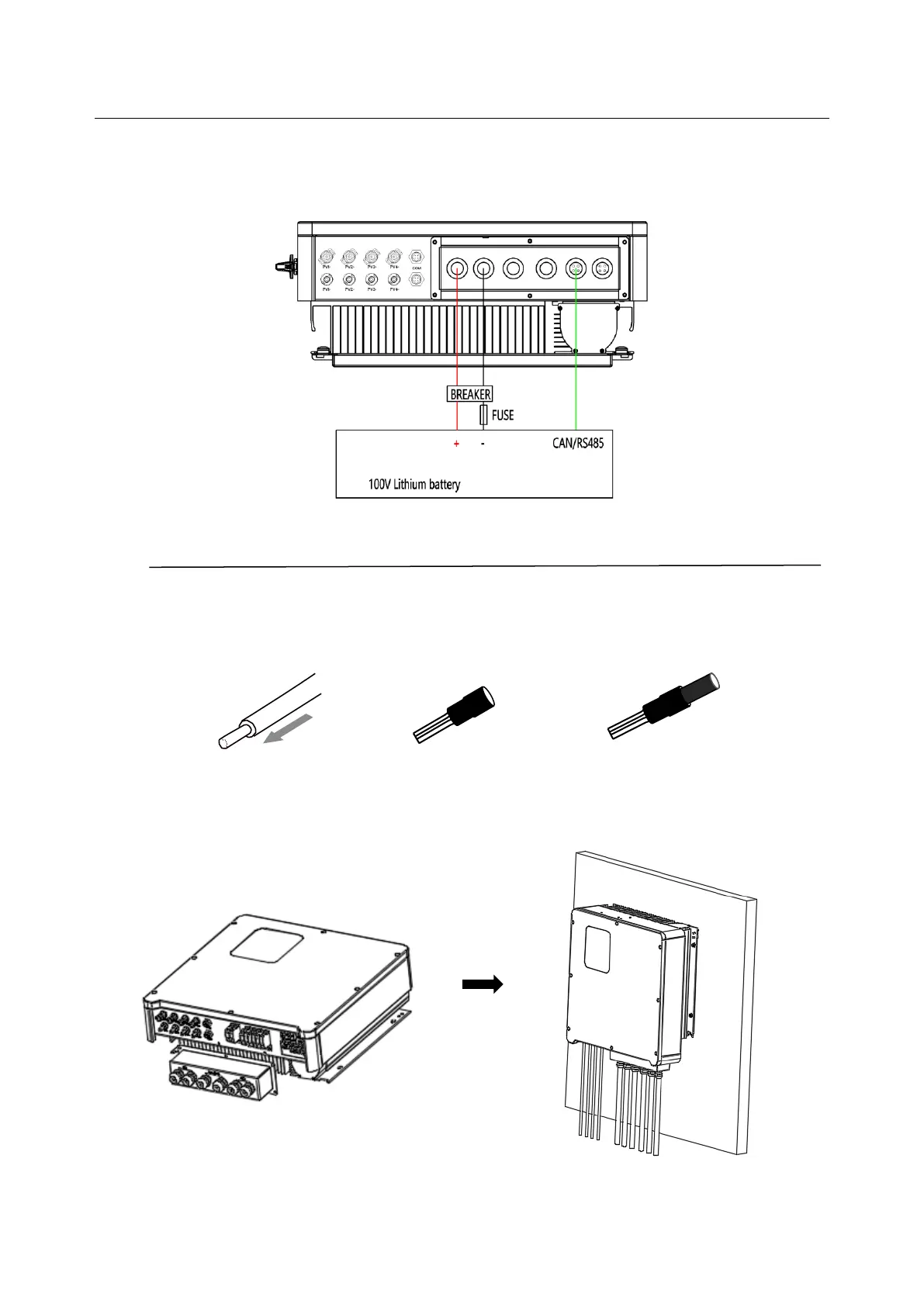

 Battery connection diagram
 Power Connection Battery
Step1
Choose the 4 AWG wire and strip the cable to 15mm. Select two O-terminals with an
aperture of M8. Insert the stripping line into the O-terminal and clamp it with a
crimping clamp.
Step2. Cross the battery cable through the battery port. Connect battery cable to
battery terminal.
