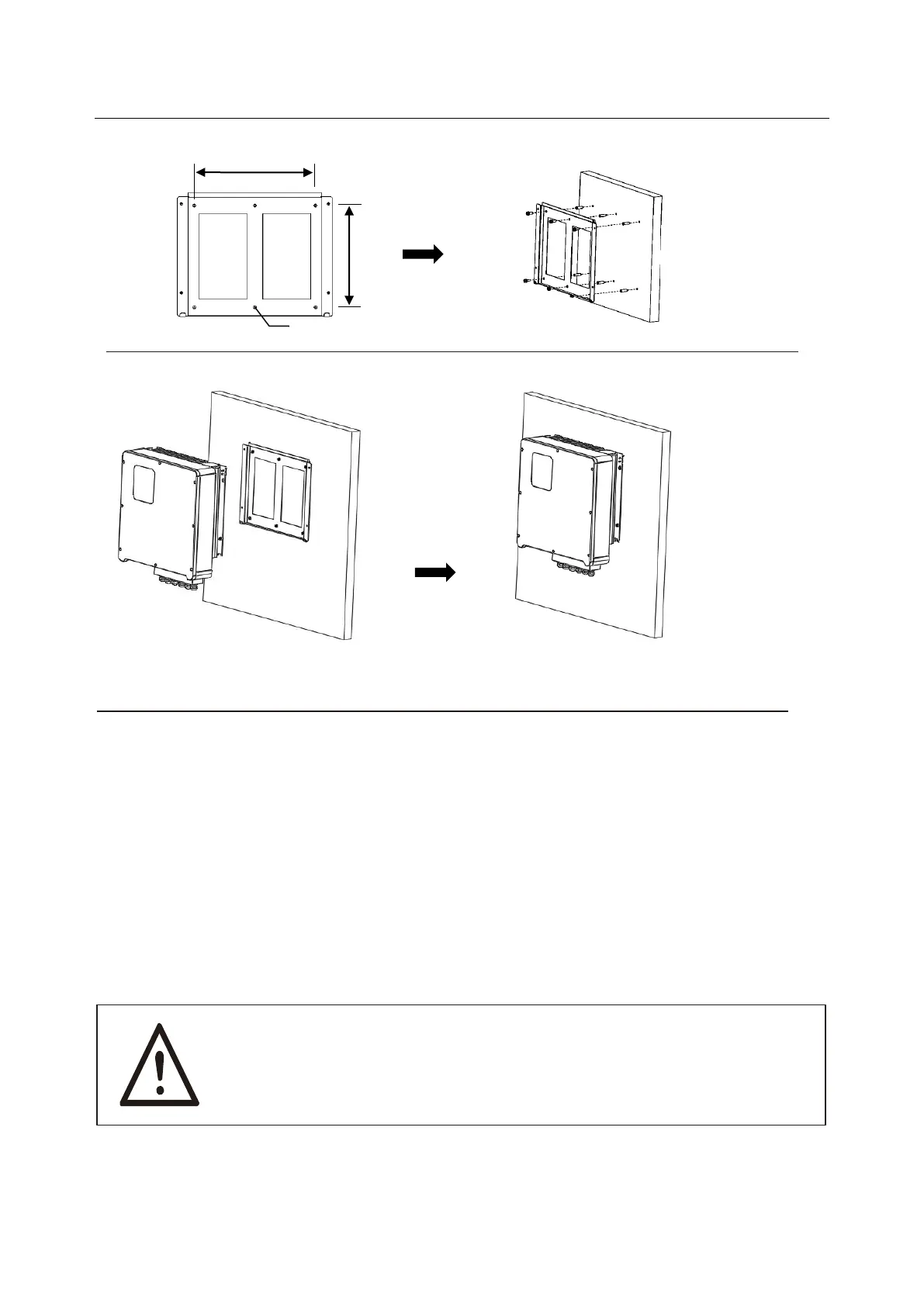

Step 1: Screw the wall bracket on the wall
Step 2: Place the inverter on the wall mounted bracket by holding the handle on the side.
5. Electrical Connection
5.1 PV connection
Hybrid can be connected in series with 4-strings PV modules for 10KVA, 12KVA, 15KVA.
Select PV modules with excellent function and reliable quality. Open-circuit voltage of
module arrays connected in series should be <Max. DC input voltage; operating voltage
should be conformed to MPPT voltage range.
Warning!
PV module voltage is very high, which already achieve dangerous voltage range,
please comply with electric safety rules when connecting.
Please do not make PV positive or negative ground!
Step 1: Connection Steps
1. Checking PV module.
