INVT BD-RH1 Series User Manual

20
6. Setting

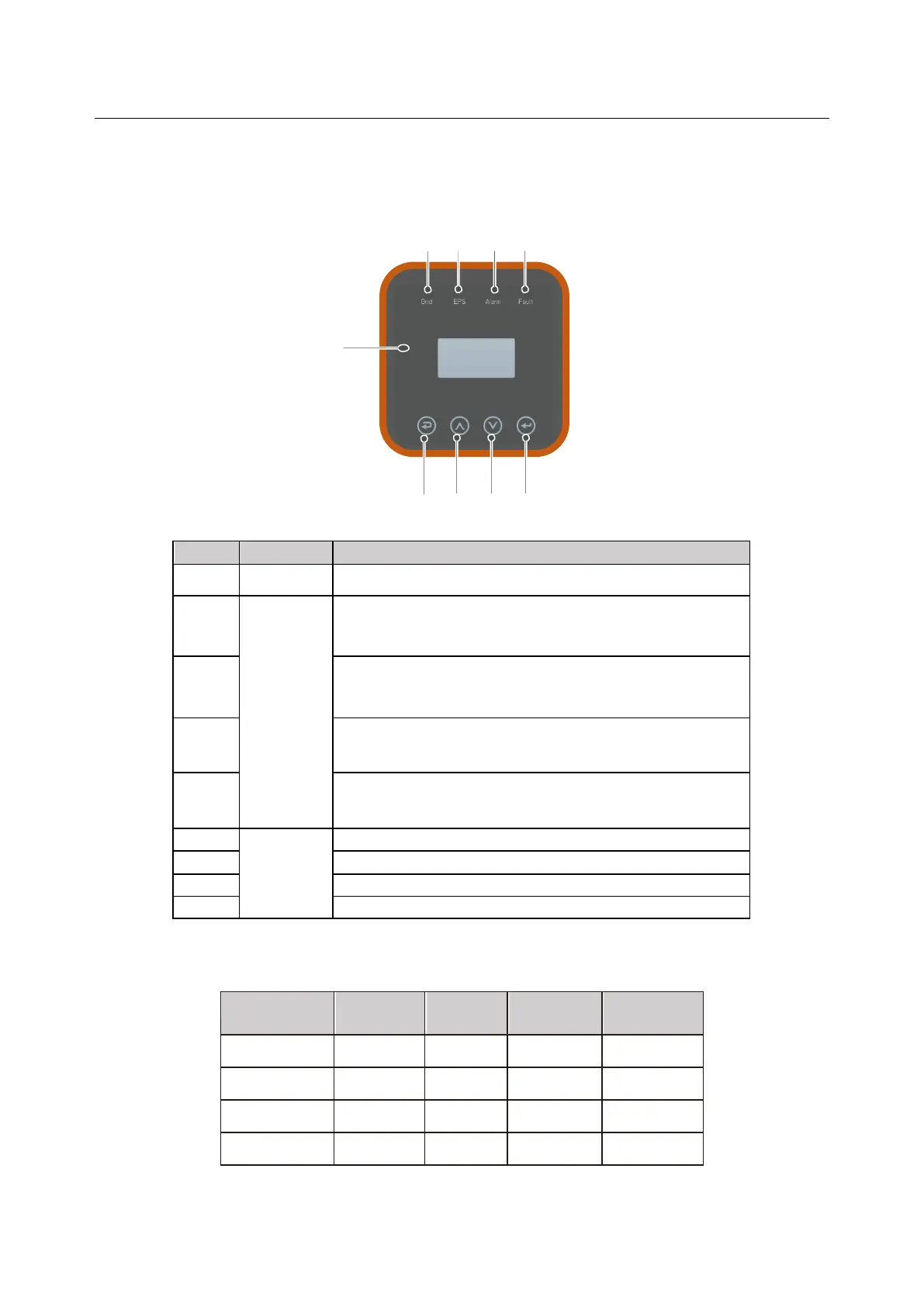

6.1 Control Panel
B C D E
A
F G H
I
Object
Name
Description
A
LCD Screen
Display the information of the inverter.
B
Indicator
LED
Lit in green: The inverter is in grid mode.
Off: The inverter is in not in grid
mode.
C
Lit in green: The inverter is in off-grid mode.
Off: The inverter is in not in off-grid
mode.
D
Lit in Yellow: The inverter is in warning.
Off: The inverter has no Inverter
Warning
E
Lit in red: The inverter is in fault status.
Off: The inverter has no errors.
F
Function
Button
Esc: Return from current interface or function.
G
Up: Move cursor to upside or increase value.
H
Down: Move cursor to downside or decrease value.
I
Enter: Confirm the selection.
6.2 Instructions for LED Indicator
Grid
（Green）
BAC
K-UP
（Green）
Alarm
(Yellow)
Fault
(Red)
Initialization
off
off
off
off
Stand-by
off
off
off
off
Grid mode
on
off
off
off
Off-Grid
off
on
off
off
