1. Basic features
BD Hybrid series is a high-quality inverter which can convert solar
energy to AC energy and store energy into battery.
The inverter can be used to optimize self consumption, store in the
battery for future use or feedin to public grid. Work mode depends on PV
energy and user's preference. It can provide power for emergency use
during the grid lost by using the energy from battery and
inverter(generated from PV).
Introduction Introduction

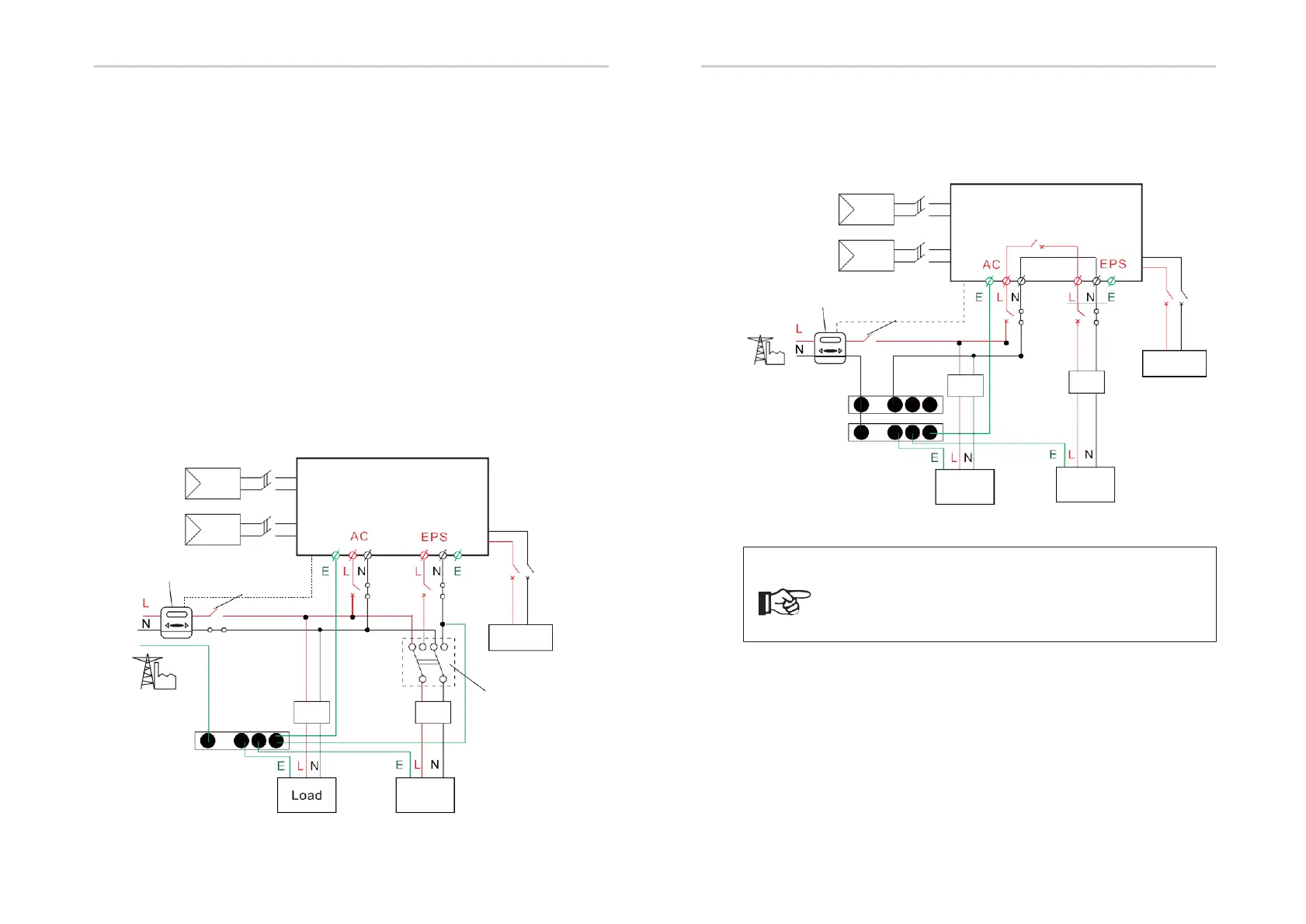

System Diagram
BD series is designed with two EPS versions for customer to choose
based on the local rules.
E Version applies to the wiring rules that requires the Live line and
Neutral line of EPS must be disconnected with the Live line and Neutral
line of grid(applies to most countries).
INVT
meter
+
-
Battery
DPDT
E -BAR
Main switch
RCD
PV1+
PV1 -
PV2+
PV2 -
RCD
PE
EPS
Load
Inverter
I Version applies to the wiring rules that requires Neutral line of
alternative supply must NOT be isolated or switched (applies to wiring
rules AS/NZS_3000:2012 for Australia and New Zealand).
+
-
Battery
INVT meter
Main switch
RCD
PV1+
PV1 -
PV2+
PV2 -
RCD
EPS
Loads
Inverter
Loads
E -BAR
E -BAR
Note!
•Please control the home loads, and make sure it's within the
"EPS output rating" under EPS mode, otherwise the inverter
will shutdown with an "overload fault" warning.
•Please confirm with the mains grid operator whether there
is any special regulations for grid connection.
