Installation
5.1 Check for Physical Damage
Make sure the inverter is intact during transportation. If there is any
visible damage, such as cracks, please contact your dealer immediately.
5.2 Packing List

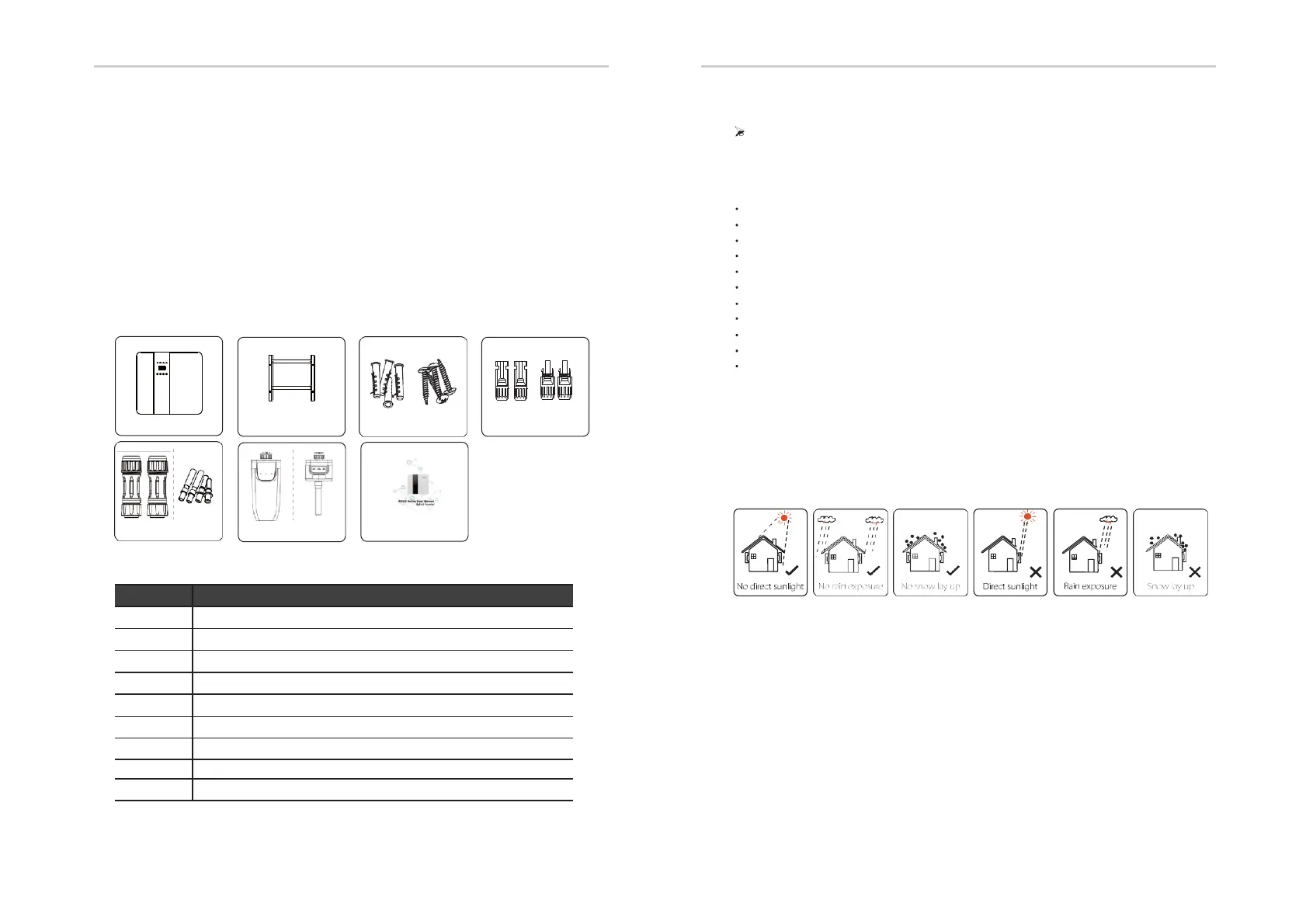

Open the package and take out the product, please check the
accessories first. The packing list shown as below.
Installation Installation
A
B C D
E F
I
Object Description
A Inverter
B Bracket
C Expansion screws and pan-head screws
D PV connectors (2*positive, 2*negative)
E
AC terminals
F PV pin connectors (2*positive, 2*negative)
G
Wifi module (optional)
H
GPRS module (optional)
I
User manual
5.3 Mounting
Installation Precaution
BD series inverter is designed for outdoor installation (IP
65). Make sure the installation site meets the following
conditions:
Not in direct sunlight.
Not in areas where highly flammable materials are stored.
Not in potential explosive areas.
Not in the cool air directly.
Not near the television antenna or antenna cable.
Not higher than altitude of about 2000m above sea level.
Not in environment of precipitation or humidity (＞95%).
Under good ventilation condition.
The ambient temperature in the range of -20℃ to +60℃.
The slope of the wall should be within ± 5° .
The wall hanging the inverter should meet conditions below:
1.solid brick/concrete, or strength equivalent mounting surface;
2.Inverter must be supported or strengthened if the wall's strength isn't
enough(such as wooden wall, the wall covered by thick layer of decoration)
Please AVOIDE direct sunlight, rain exposure, snow laying up during
installation and operation.
