INVT CHE100-0R7G-S2 User Manual

Introduction
2

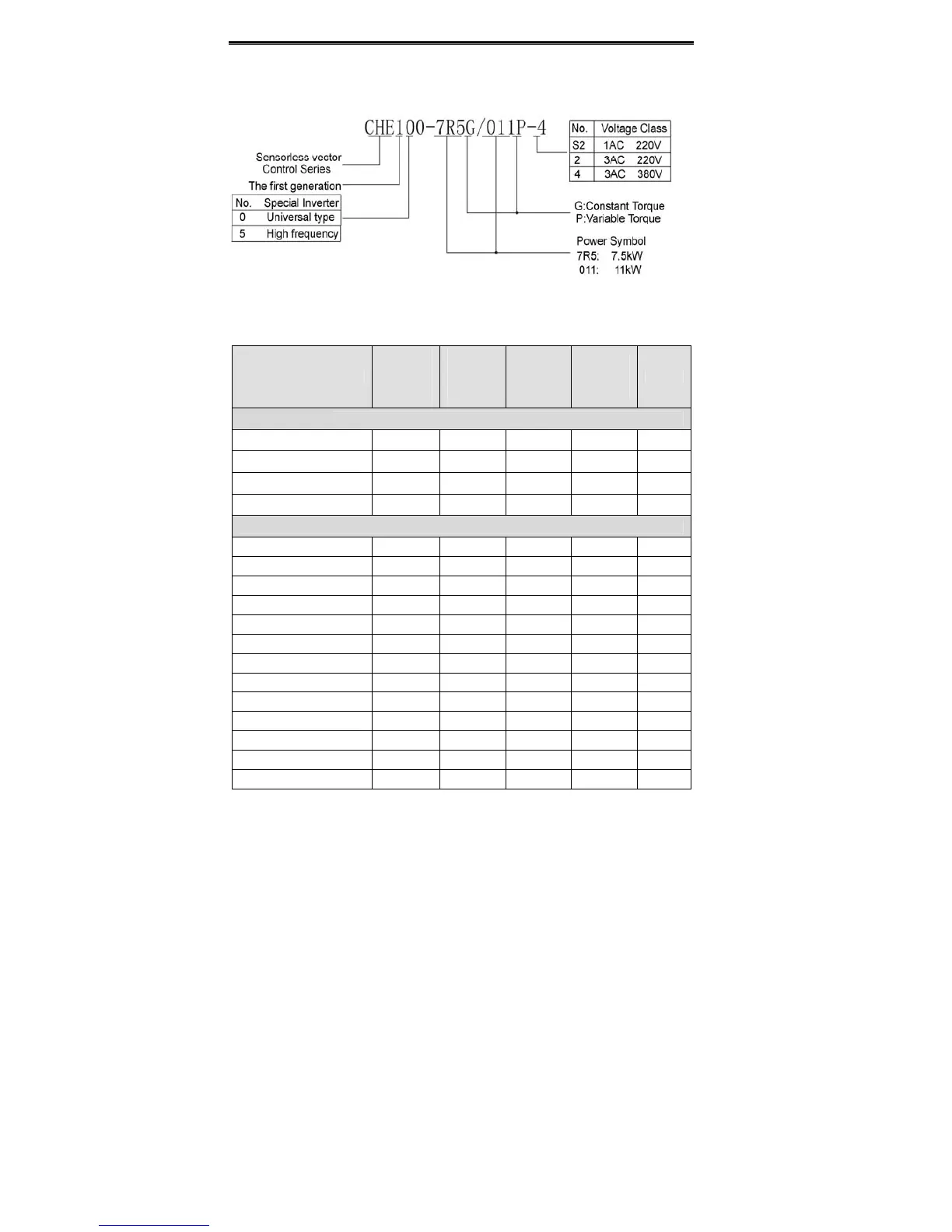

1.2 Description of Name Plate
Figure 1.1 Nameplate of inverter.
1.3 Selection Guide
Model No.
Rated
Output
Power
(kW)
Rated
Input
current
(A)
Rated
Output
current
(A)
Motor
Power
(KW)
Size
1AC 220V ±15%
CHE100-0R4G-S2 0.4 5.4 2.3 0.4 A
CHE100-0R7G-S2 0.75 8.2 4.5 0.75 A
CHE100-1R5G-S2 1.5 14.2 7.0 1.5 B
CHE100-2R2G-S2 2.2 23.0 10 2.2 B
3AC 220V ±15%
CHE100-0R7G-2 0.75 5.0 4.5 0.75 A
CHE100-1R5G-2 1.5 7.7 7 1.5 B
CHE100-2R2G-2 2.2 11.0 10 2.2 B
CHE100-004G-2 4.0 17.0 16 3.7 C
CHE100-5R5G-2 5.5 21.0 20 5.5 C
CHE100-7R5G-2 7.5 31.0 30 7.5 D
CHE100-011G-2 11.0 43.0 42 11.0 E
CHE100-015G-2 15.0 56.0 55 15.0 E
CHE100-018G-2 18.5 71.0 70 18.5 E
CHE100-022G-2 22.0 81.0 80 22.0 F
CHE100-030G-2 30.0 112.0 110 30.0 F
CHE100-037G-2 37.0 132.0 130 37.0 F
CHE100-045G-2 45.0 163.0 160 45.0 G
