Function
Code

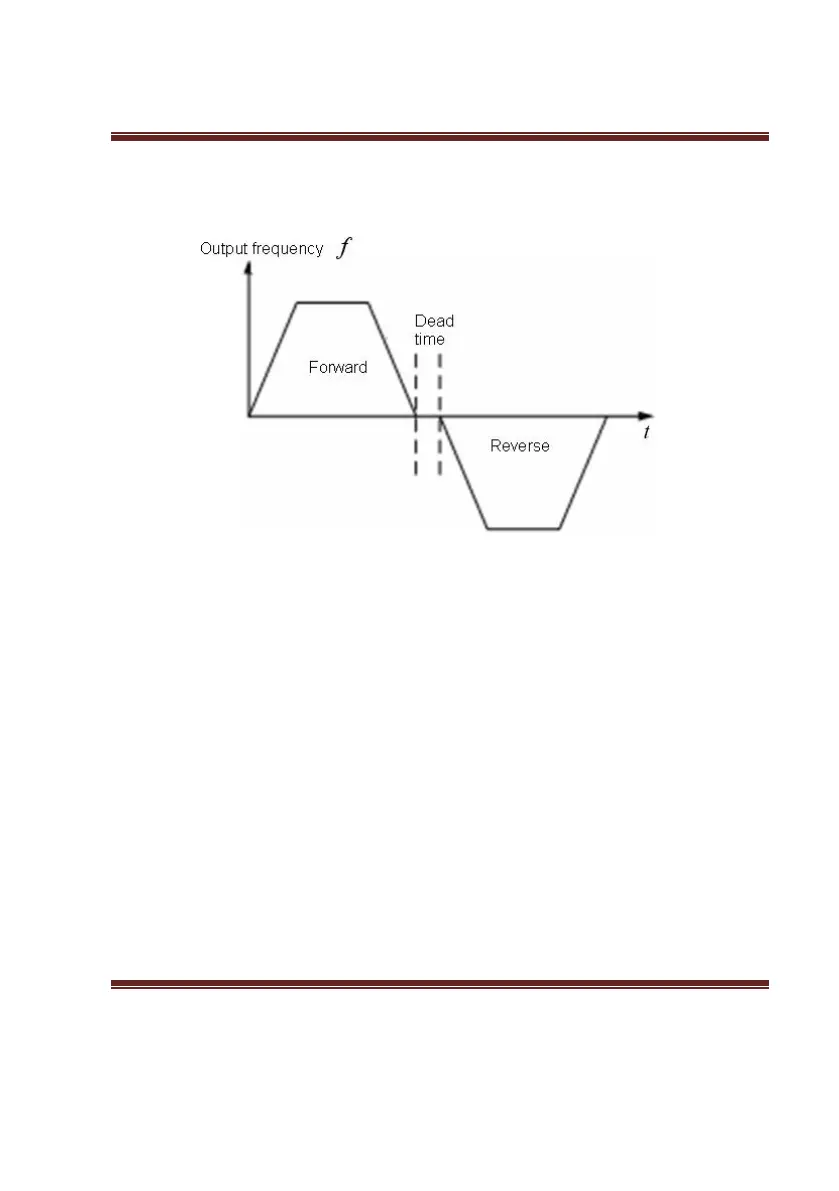

Figure 6.5 FW D/REV dead time diagram.
Setting
Name Description
Range
UNDER LIMIT
Factory
Setting
P1.11
ACT
0~1 0~1 0
P1.12 LIMIT RUN TIME 0 ～ 3600s 0 ～ 3600 5
P1.13 AW OKE DELAY 0 ～ 3600s 0 ～ 3600 5
The function code of P1.11determine the running state of inverter when setting frequency
is lower than lower frequency limit.
