Goodrive170-PV Series Solar Pump Inverter Keypad operation guidelines
-14-

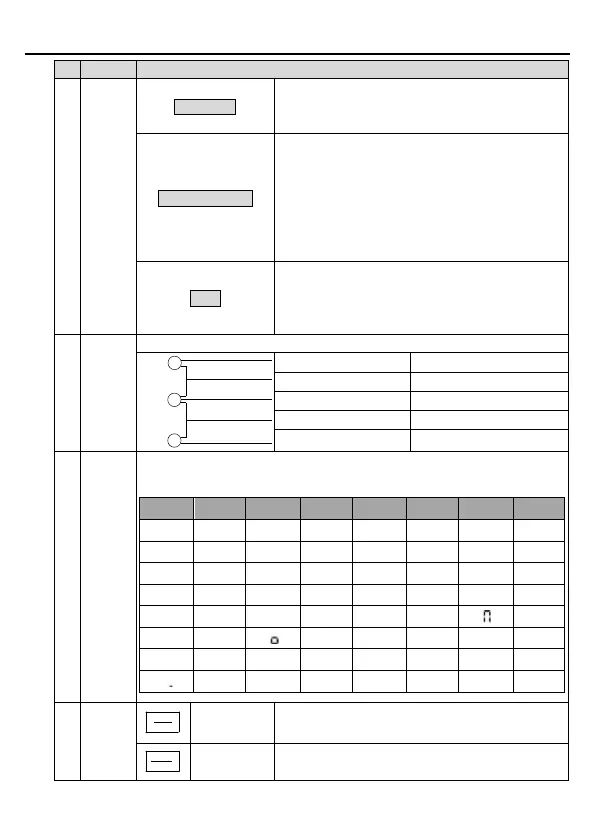

No.
Item
Description
FWD/REV
Forward or reverse running indicator.
Off: The inverter is running forward.
On: The inverter is running reversely.
LOCAL/REMOT
Indicates whether the inverter is controlled
through the keypad, terminals, or communication.
Off: The inverter is controlled through the keypad.
Blinking: The inverter is controlled through
terminals.
On: The inverter is controlled through remote
communication.
TRIP
Fault indicator
Off: in normal state
Blinking: in pre-alarm state
On: in fault state
2
Unit
indicator
Unit displayed currently
Hz
Frequency unit
RPM
Rotation speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Digital
display
zone
Five-digit LED displays various monitoring data and alarm codes such as
the frequency setting and output frequency.
Display
Means
Display
Means
Display
Means
Display
Means
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
a
A
b
B
c
C
d
D
e
E
f
F
h
H
i
I
l
L
N
n
n
o
p
P
r
r
s
S
t
t
u
U
v
v
.
-
-
4
Keys
PRG
ESC
Programming
key
Press it to enter or exit level-1 menus or delete a
parameter.
DATA
ENT
Confirmation
key
Press it to enter menus in cascading mode or
confirm the setting of a parameter.
