Goodrive170-PV Series Solar Pump Inverter Keypad operation guidelines
-13-
4 Keypad operation guidelines
4.1 Keypad introduction
The keypad is used to control the inverter, read inverter status, and set parameters. If you
need to install the keypad on another position rather than on the inverter, use a keypad
extension cable with a standard RJ45 crystal head.

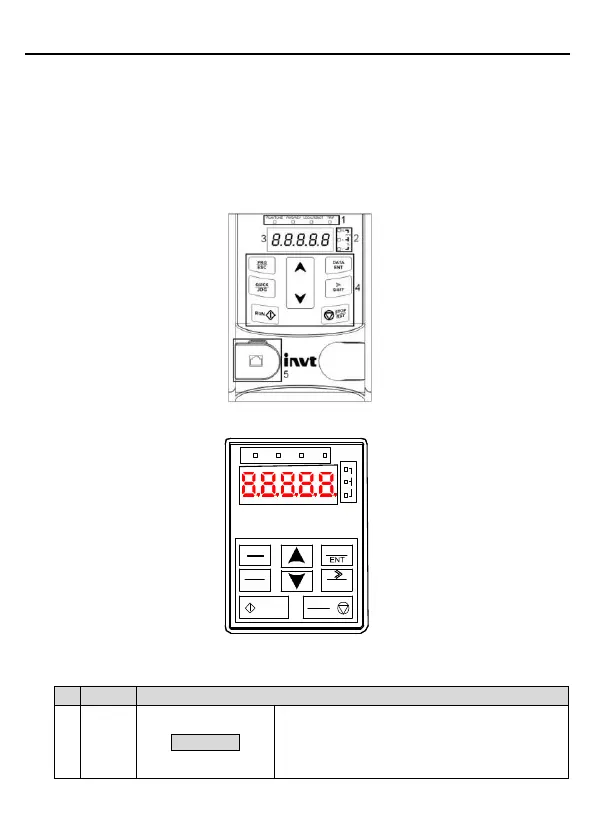

Figure 4-1 Keypad diagram for inverters of ≤ 2.2kW
Figure 4-2 Keypad diagram for inverters of ≥ 4kW
1
2
4
3
PRG
ESC
DATA
QUICK
JOG
SHIFT
RUN
STOP
RST
RUN/TUNE FWD/REV LOCAL/REMOT TRIP
HZ
A
V
RPM
%
Note: The inverter models of 2.2kW support an optional extermal keypad, and the
keypad of inverter models of ≥ 4kW can be installed on another device.
Inverter running status indicator.
Off: The inverter is stopped.
Blinking: The inverter is autotuning parameters.
On: The inverter is running.
