INVT GD170-045-4-PV User Manual

Goodrive170-PV Series Solar Pump Inverter Power frequency & PV switching solution
-65-
Inverter model
AC
breaker
(A)
DC
Breaker
AC
Contactor
(A)
SPD
Fuse
Diode
I
FAV
/V
RRM
GD170-5R5-4-PV-AS
25
25A/
1000VD
C
25
GD170-7R5-4-PV-AS
40
40
GD170-011-4-PV-AS
50
63A/
1000VD
C
50
GD170-015-4-PV-AS
63
63
GD170-018-4-PV-AS
63
100A/
1000VD
C
63
110A/1600V
GD170-022-4-PV-AS
100
95
GD170-030-4-PV-AS
100
95
GD170-037-4-PV-AS
125
125A/
1000VD
C
115
GD170-045-4-PV-AS
200
160A/
1000VD
C
170
160A/1600
V

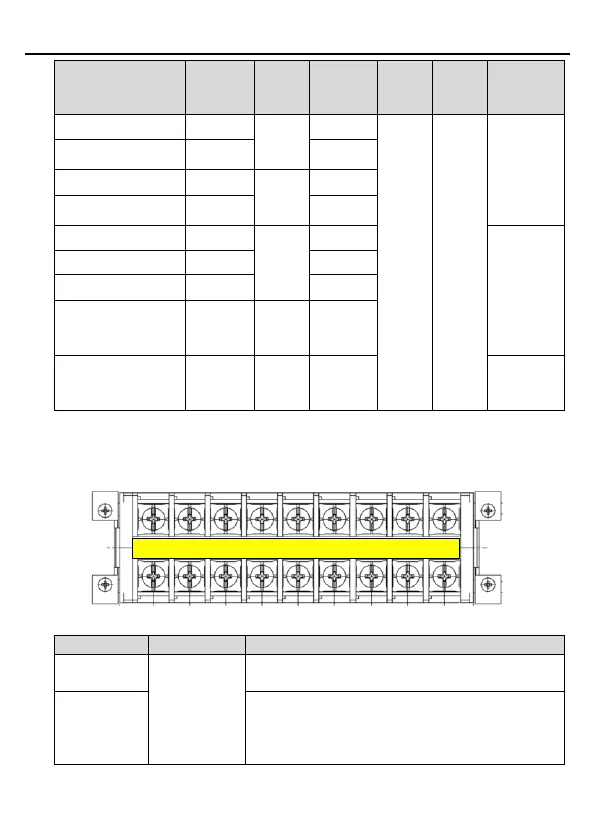

C.2 Wiring description
The following figures show the wiring terminals of the inverter.
Figure C-3 Wiring terminals
+ - R S T N U V W
Terminal function description:
Symbol
Terminal name
Description
R, S, T
AC input
3PH AC (3PH 380V) input terminals, connected to the
grid
N
Neutral wire
For inverter models of 4-37kW, it is required to use
three-phase four-wire distribution system and connect
the neutral wire to terminal N.
