Goodrive170-PV Series Solar Pump Inverter Dimension drawings
-67-
Appendix D Dimension drawings
D.1 External keypad structure

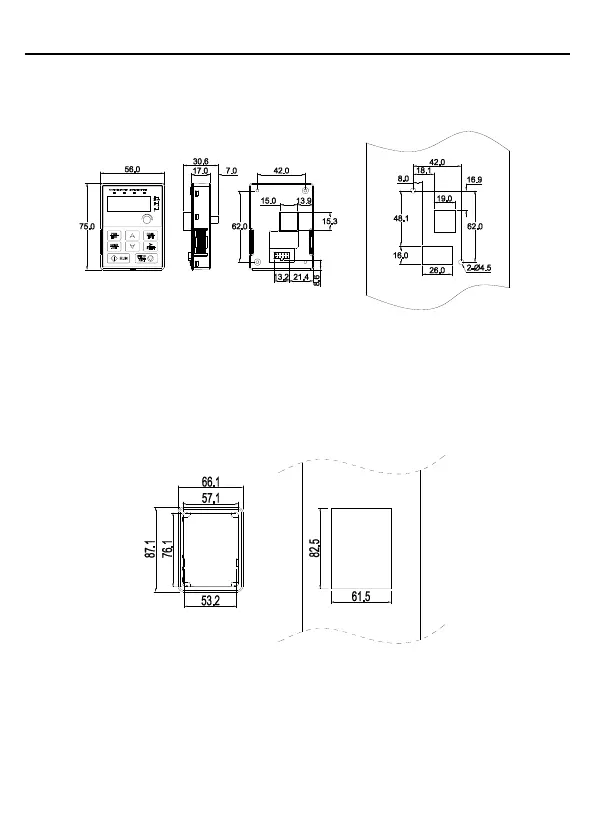

Keypad outline drawing
Keypad cut-out drawing (without
bracket)
Note: The inverter models of 380V 2.2kW–4kW support an optional extermal keypad,
and the keypad of inverter models of 380V 5.5kW and higher can be installed on another
device.
If the keypad is externally installed on an optional bracket, it can be 20 meters away from
the inverter at most.
Keypad adapter bracket
Installation dimensions
