Goodrive170-PV Series Solar Pump Inverter Dimension drawings
-68-

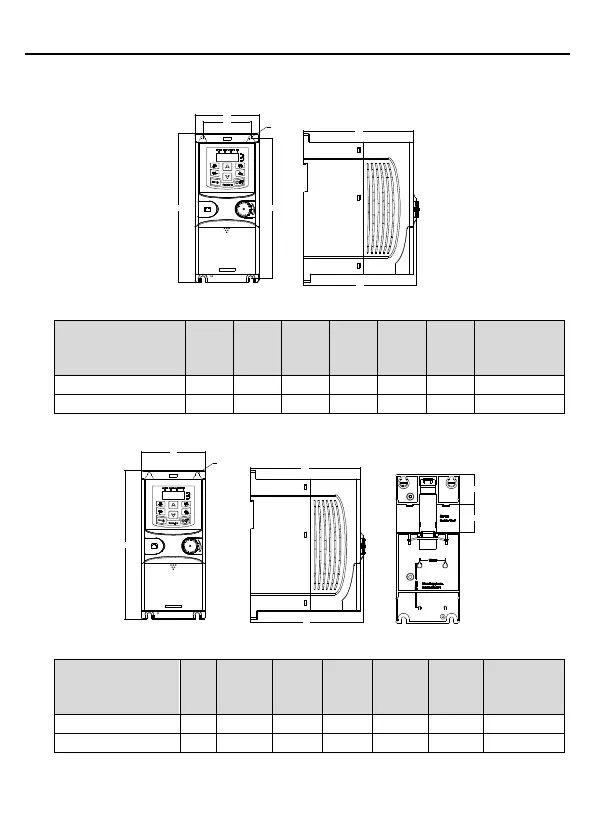

D.2 Dimensions of 2.2–4 kW models
Figure D-1 Wall mounting
d
D1
D2
W1
H1 H2
W2
Table D-1 Wall-mounting dimensions (unit: mm)
Model
W1
W2
H1
H2
D1
D2
Installation
hole diameter
(d)
GD170-2R2-4-PV
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
GD170-004-4-PV
80.0
60.0
185.0
175.0
140.5
137.3
Ø 5
Figure D-2 Rail mounting
d
H3
H4
D1
D2
W1
H1
Table D-2 Rail-mounting dimensions (unit: mm)
Model
W1
H1
H3
H4
D1
D2
Installation
hole
diameter (d)
GD170-2R2-4-PV
80.0
185.0
35.4
36.6
140.5
137.3
Ø 5
GD170-004-4-PV
80.0
185.0
35.4
36.6
140.5
137.3
Ø 5
