INVT GD170-045-4-PV User Manual

Goodrive170-PV Series Solar Pump Inverter Dimension drawings
-69-

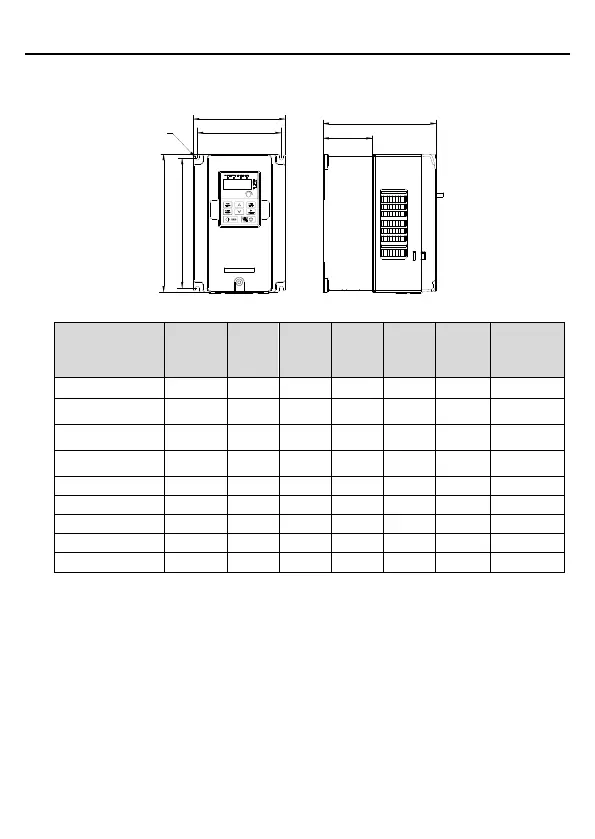

D.3 Dimensions of 5.5–45kW models
Figure D-3 Wall mounting
H1
H2
W1
W2
D2
Ø
D1
Table D-3 Wall-mounting dimensions (unit: mm)
Model
W1
W2
H1
H2
D1
D2
Installation
hole
diameter
GD170-5R5-4-PV
146.0
131.0
256.0
243.5
167.0
84.5
Ø 6
GD170-7R5-4-PV
146.0
131.0
256.0
243.5
167.0
84.5
Ø 6
GD170-011-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
Ø 6
GD170-015-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
Ø 6
GD170-018-4-PV
170.0
151.0
320.0
303.5
196.3
113.0
Ø 6
GD170-022-4-PV
200.0
185.0
340.6
328.6
184.3
104.5
Ø 6
GD170-030-4-PV
200.0
185.0
340.6
328.6
184.3
104.5
Ø 6
GD170-037-4-PV
250.0
230.0
400.0
380.0
202.0
123.5
Ø 6
GD170-045-4-PV
250.0
230.0
400.0
380.0
202.0
123.5
Ø 6
