INVT GD170-045-4-PV User Manual

Goodrive170-PV Series Solar Pump Inverter Dimension drawings
-70-

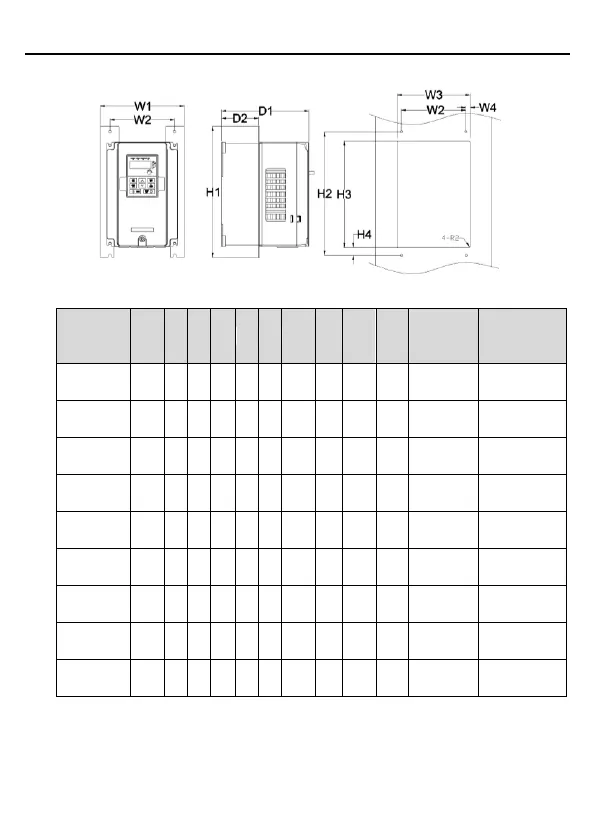

Figure D-4 Flange mounting
Table D-4 Flange-mounting dimensions (unit: mm)
Model
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Nut
specifications
GD170-5R5
-4-PV
170.2
131
150
9.5
292
276
260
6
167
84.5
Ø 6
M5
GD170-7R5
-4-PV
170.2
131
150
9.5
292
276
260
6
167
84.5
Ø 6
M5
GD170-011
-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
Ø 6
M5
GD170-015
-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
Ø 6
M5
GD170-018
-4-PV
191.2
151
174
11.5
370
351
324
12
196.3
113
Ø 6
M5
GD170-022
-4-PV
266
250
224
13
371
250
350.6
20.3
184.6
104
Ø 6
M5
GD170-030
-4-PV
266
250
224
13
371
250
350.6
20.3
184.6
104
Ø 6
M5
GD170-037
-4-PV
316
300
274
13
430
300
410
55
202
118.3
Ø 6
M5
GD170-045
-4-PV
316
300
274
13
430
300
410
55
202
118.3
Ø 6
M5
Note: The flange mounting plate shall be used for flange mounting.
