INVT GD170-045-4-PV User Manual

Goodrive170-PV Series Solar Pump Inverter Keypad operation guidelines
-17-
record parameters.
• It cannot be modified in running state and can be modified only in stopped state.
Example: Change the value of P00.01 from 0 to 1.

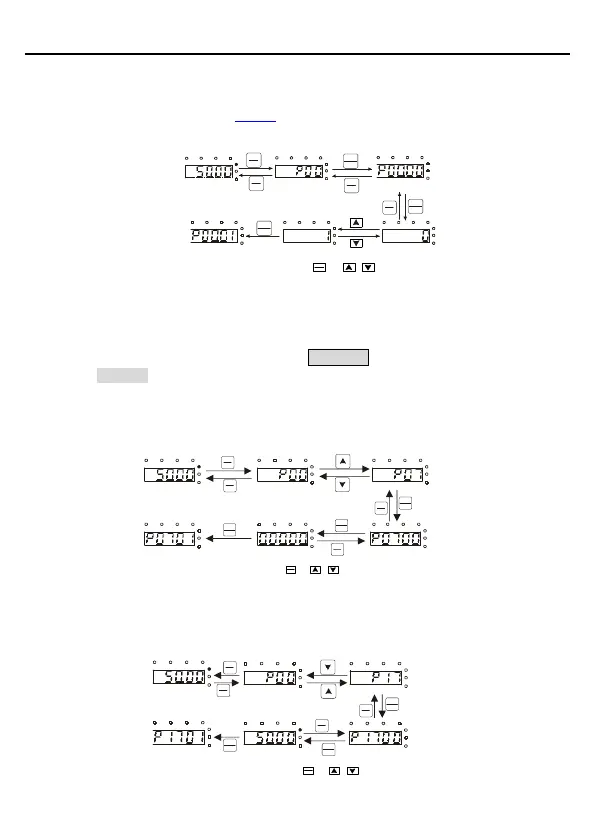

Figure 4-4 Modifying a parameter
The ones place is
blinking.
The ones place is
blinking.
All digits are
blinking.
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
The ones place is
blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
4.3.2 Setting a password for the inverter
The inverter provides password protection function to users. Set P07.00 to gain the
password and the password protection becomes effective 1 minute later after retreating
from the function code editing state. Press PRG/ESC again to the function code editing
state, "0.0.0.0.0" will be displayed. Unless using the correct password, you cannot enter
it.
To disable the password protection function, you need only to set P07.00 to 0.
Figure 4-5 Setting a password
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
DATA
ENT
DATA
ENT
DATA
ENT
All digits are blinking. The ones place is blinking.
The ones place is blinking.
The ones place is blinking. The ones place is blinking. The ones place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
4.3.3 Viewing inverter status
The inverter provides group P17 for status viewing. You can enter group P17 for viewing.
Figure 4-6 Viewing a parameter
All digits are
blinking.
The ones place
is blinking.
DATA
ENT
DATA
ENT
DATA
ENT
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
The ones place is blinking.
The ones place is blinking.
The ones place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
