INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Operating
- 108 -
PRC
ESC
PRC
ESC
DATA
ENT
PRC
ESC
DATA
ENT
PRC
ESC
DATA
ENT
The units place is blinking. All digits are blinking. The units place is blinking.
The units place is blinking.
The units place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT

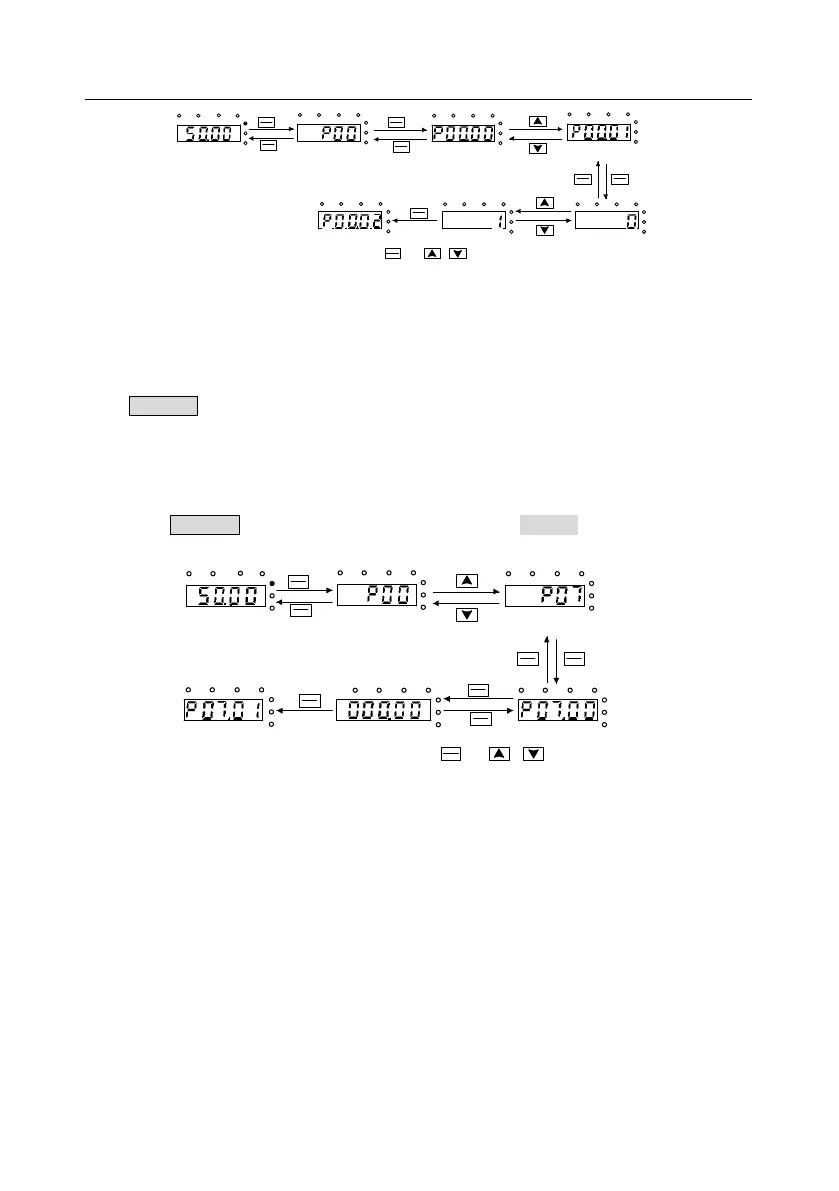

Figure 6.3 Sketch map of modifying parameters
6.4.2 How to set the password of the VFD
Goodrive350-19 VFDs provide password protection function. Set P07.00 to gain the password and
the password protection becomes valid instantly after quitting from the function code editing state.
Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless using
the correct password, you cannot enter it.
Set P07.00 to 0 to cancel password protection function.
The password protection becomes effective instantly after retreating form the function code editing
state. Press PRG/ESC again to the function code editing state, "0.0.0.0.0" will be displayed. Unless
using the correct password, the operators cannot enter it.
PRC
ESC
PRC
ESC
DATA
ENT
PRC
ESC
DATA
ENT
The units place is blinking. All digits are blinking.
The units place is blinking.
The units place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
PRC
ESC
PRC
ESC
The units place is blinking.
The units place is blinking.
Figure 6.4 Sketch map of password setting
6.4.3 How to view the VFD state through function codes
Goodrive350-19 series VFDs provide group P17 as the state inspection group. You can enter P17
directly to view the state.
