Goodrive350-19 series VFD Installing
- 30 -

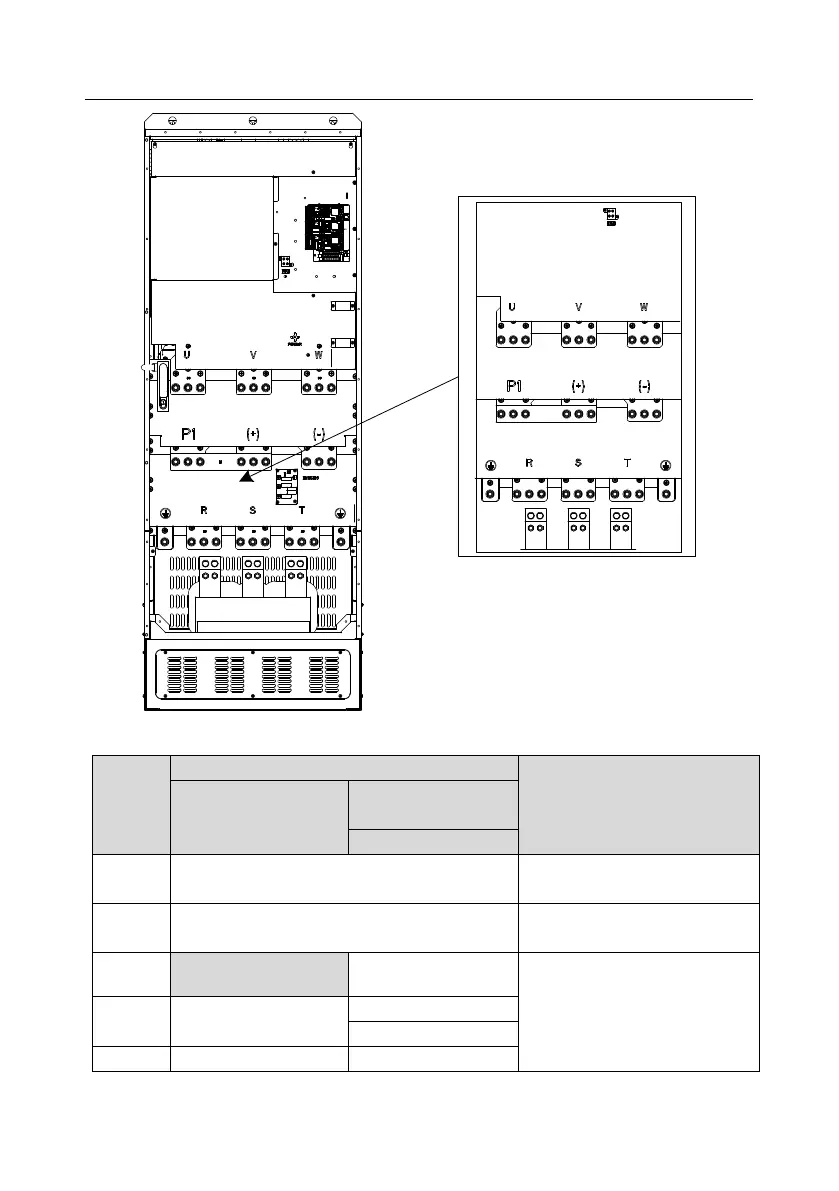

Figure 4.16 Main circuit terminal diagram for 380V 355–500kW and 660V 400–630kW VFD models
Sign
Terminal
Function description
380V 110kW and lower
380V 132kW and
higher
660V all series
R, S, T
Main circuit power input
3PH AC input terminal, connected
to the grid.
U, V, W
VFD output
3PH AC output terminal, connected
to the motor in most cases.
P1
Not available
DC reactor terminal 1
P1 and (+) connect to external DC
reactor terminals.
(+) and (-) connect to external
(+)
Braking resistor terminal
1
DC reactor terminal 2
Braking unit terminal 1
(-)
/
Braking unit terminal 2
