Goodrive350-19 series VFD Installing
- 29 -

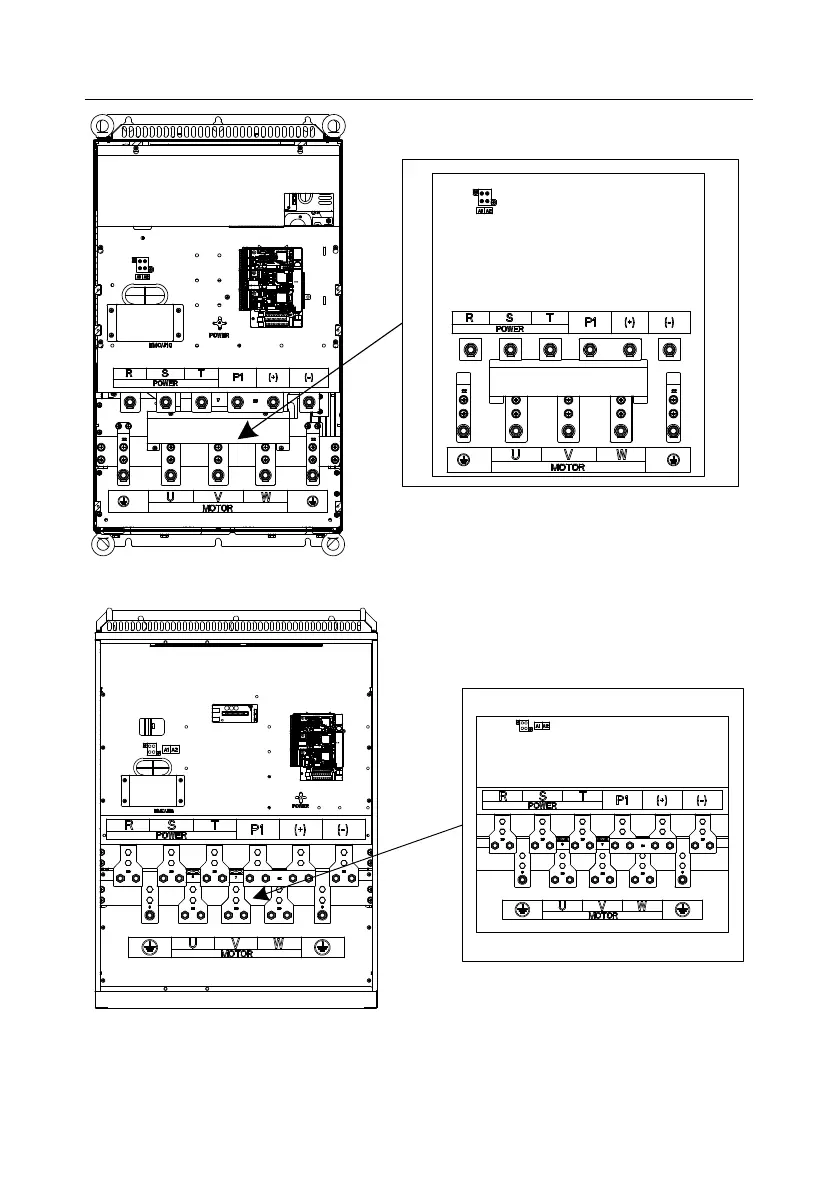

Figure 4.14 Main circuit terminal diagram for 380V 132–200kW and 660V 160–220kW VFD models
Figure 4.15 Main circuit terminal diagram for 380V 220–315kW and 660V 250–355kW VFD models
