iMars grid-tied solar inverters Installation
22

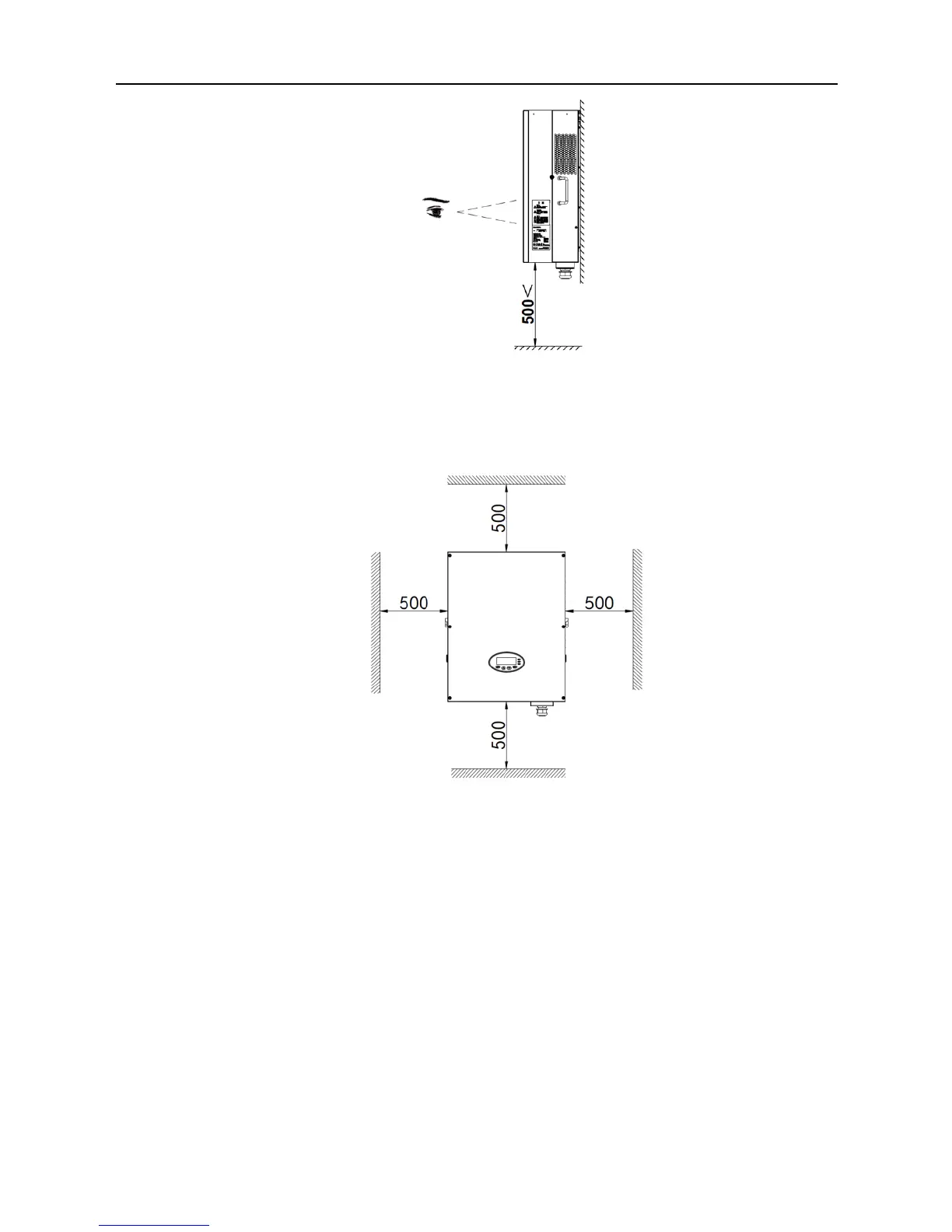

Figure 4.3 Optimal mounting height
(2) The installation site must be well ventilated and away from raindrops or direct sunlight.
(3) There must be enough pre-reserved space around the installation site for convenient
installation and disassembly of the inverter and air convection, as shown in Fig 4.4.
Fig 4.4 Installation spacing
When install more than one inverter, it is necessary to reserve a certain space between the
inverters. The left and right spacing is shown as Figure 4.5, and the upper and lower sides
of the inverter should have sufficient space to ensure good heat dissipation.
