iMars grid-tied solar inverters Installation
26
(2) Drill 6 installation holes on the wall with electric drill. As shown in Figure 4.9.

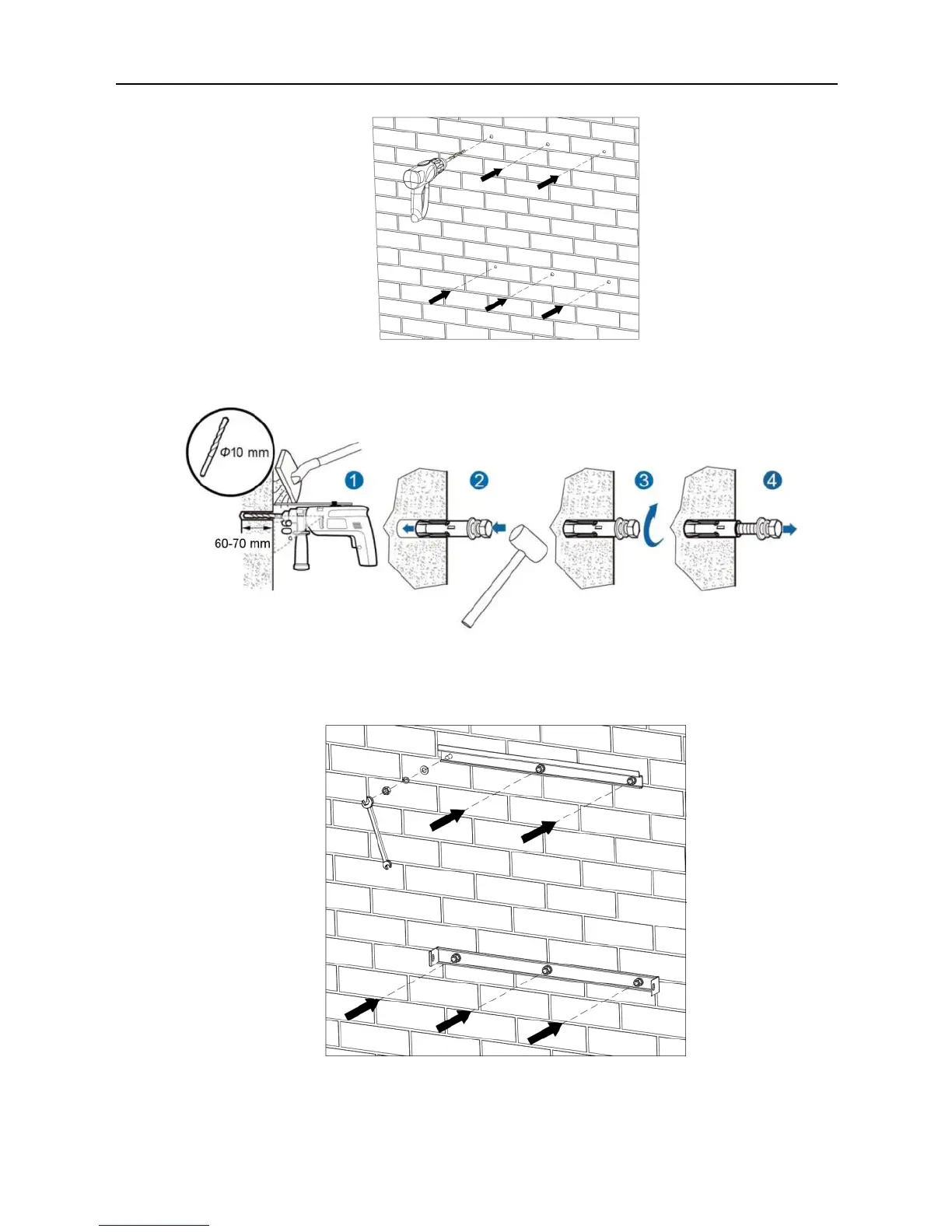

Figure 4.9 Drilling
(3) Fix the expansion bolts to the 6 installation holes with hammer, as shown in Figure 4.10.
Figure 4.10 Install expansion bolts
(4) Fix the installation bracket onto the expansion bolts and ensure the installation is firm
enough(tightening torque is 13N•m) . As shown in Figure 4.11.
Figure 4.11 Fix the installation bracket
(5) Hang the inverter onto the installation bracket and ensure the installation is firm enough.
As shown in Figure 4.12.
