SPC Series Solar Pump Inverter Keypad operation guidelines
-17-
4.3.2 Setting a password for the inverter
The inverter provides password protection function to users. Set P07.00 to gain the
password and the password protection becomes effective 1 minute later after retreating
from the function code editing state. Press PRG/ESC again to the function code editing
state, "0.0.0.0.0" will be displayed. Unless using the correct password, you cannot
enter it.
To disable the password protection function, you need only to set P07.00 to 0.
PRG
ESC
PRG
ESC
DATA
ENT
PRG
ESC
DATA
ENT
The ones place is blinking. All digits are blinking.
The ones place is blinking.
The ones place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
PRG
ESC
PRG
ESC
The ones place is blinking.
The ones place is blinking.

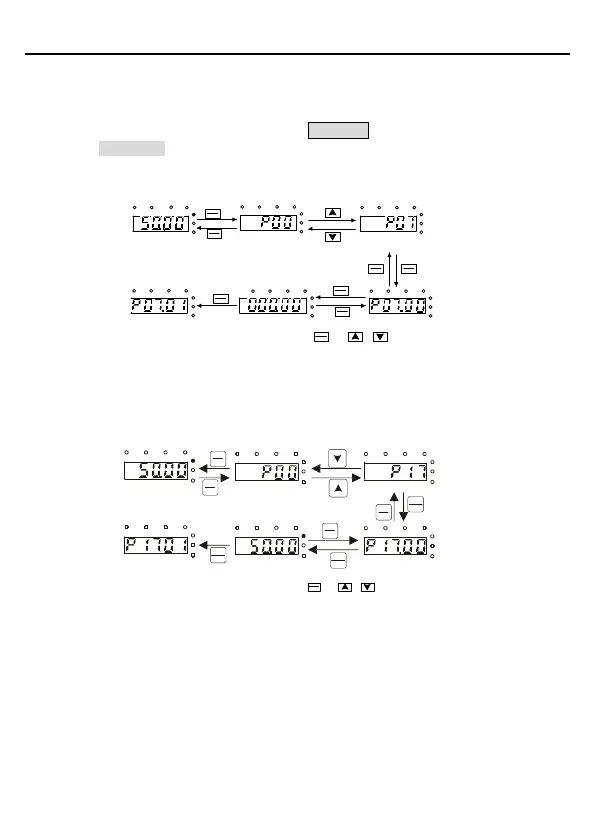

Figure 4-4 Setting a password
4.3.3 Viewing inverter status
The inverter provides groups P17 and P18 for status viewing. You can enter groups P17
and P18 for viewing.
All digits are
blinking.
The ones place
is blinking.
DATA
ENT
DATA
ENT
DATA
ENT
PRG
ESC
PRG
ESC
PRG
ESC
PRG
ESC
The ones place is blinking.
The ones place is blinking.
The ones place is blinking.
Note: When setting the value, you can press and + to modify the value.
»
SHIFT
Figure 4-5 Viewing a parameter
