Single Phase Hybrid Inverter Installation
12
≥
1
0
0
0
m
m
≥
5
0
0
m
m
≥
5
0
0
m
m
≥12
00mm
≥
500mm

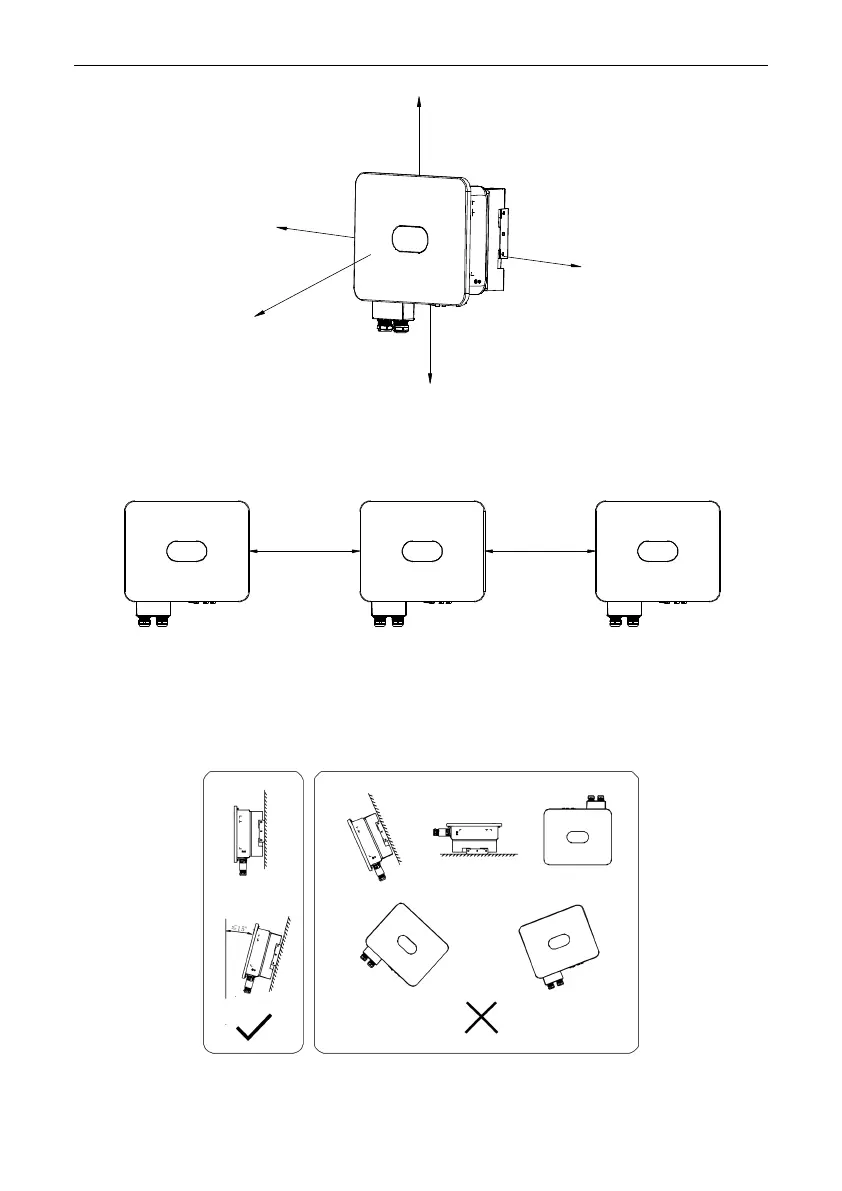

Fig. 4.4 Installation Spacing of Inverter
(3) To install more than one inverter, please keep a certain distance between the inverters and at the
top/bottom of the inverters (see Fig. 4.5), so as to facilitate heat radiation.
Fig. 4.5 Installation Dimension of Side-by-side Inverters
(4) The mounting surface should be upright (see Fig. 4.6). Install the inverter vertically or at a backward
tilt of ≤15° so as to facilitate heat radiation. Forward tilt, horizontal installation, upside-down installation,
backward tilt of >15° and sideways tilt are not allowed.
Fig. 4.6 Installation Location of Inverter
