Single Phase Hybrid Inverter Electrical Connection
22
Note: The probe of the temperature sensor used to monitor the ambient temperature of the lead-acid battery
should be shorter than 1.5m; if you use lithium battery instead, there is no need to install a temperature sensor.

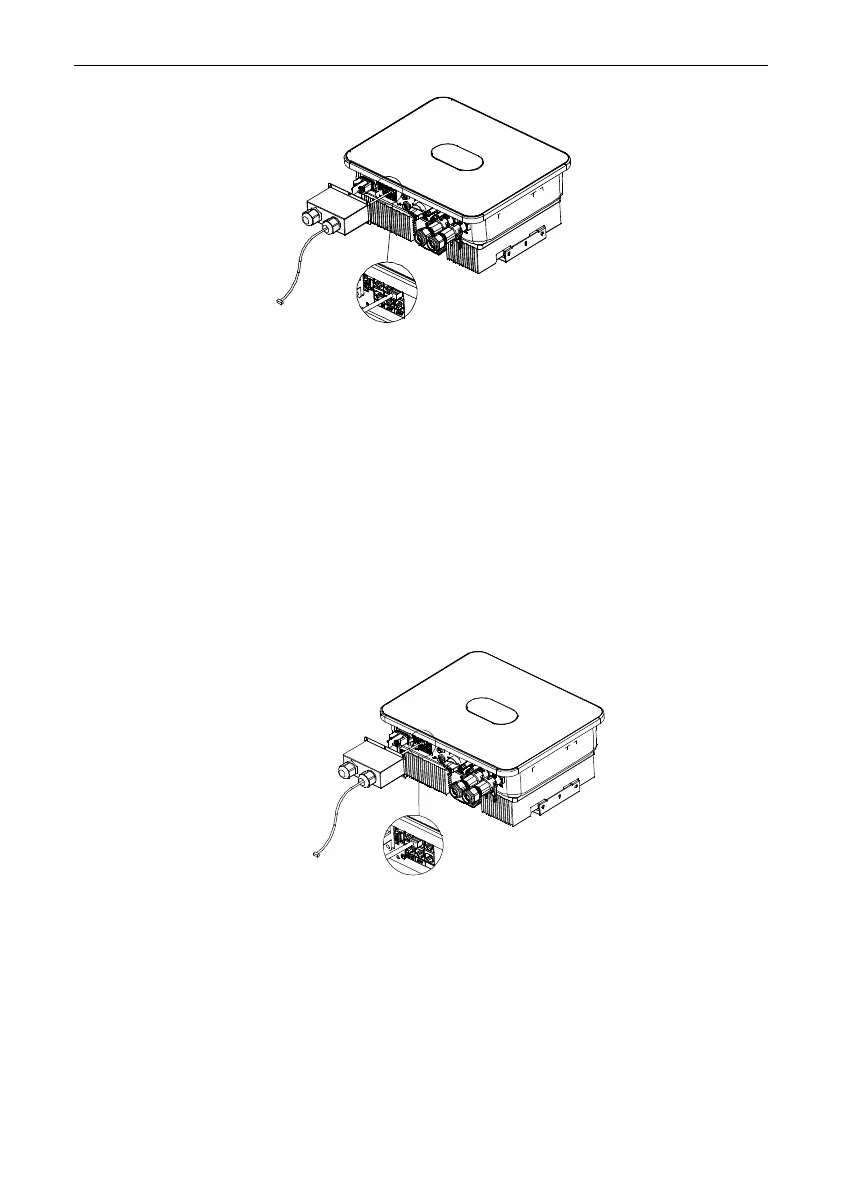

5.6 CT Connection
The current transformer used on the inverter can help monitor the energy use of the home user. Below are the
CT connection steps.
1. Unscrew the rubber nut on the waterproof cover of the hybrid inverter;
2.
Pass the CT cable through the rubber nut, sealing ring, threaded sleeve and waterproof cover in turn;
3.
Connect the RJ45 terminal of the CT cable to the CT port of the hybrid inverter;
4. Lock the waterproof cover with screws;
5.
Screw the rubber nut reliably onto the waterproof cover.
CT cable: 5m in length, RJ45, standard LAN cable (8-pin connector at one end, connecting current
transformer at the other end). It can be extended by an extension cable to 15m if necessary. See the figure below.
