INVT XD3TL User Manual

Single Phase Hybrid Inverter Product Introduction
5

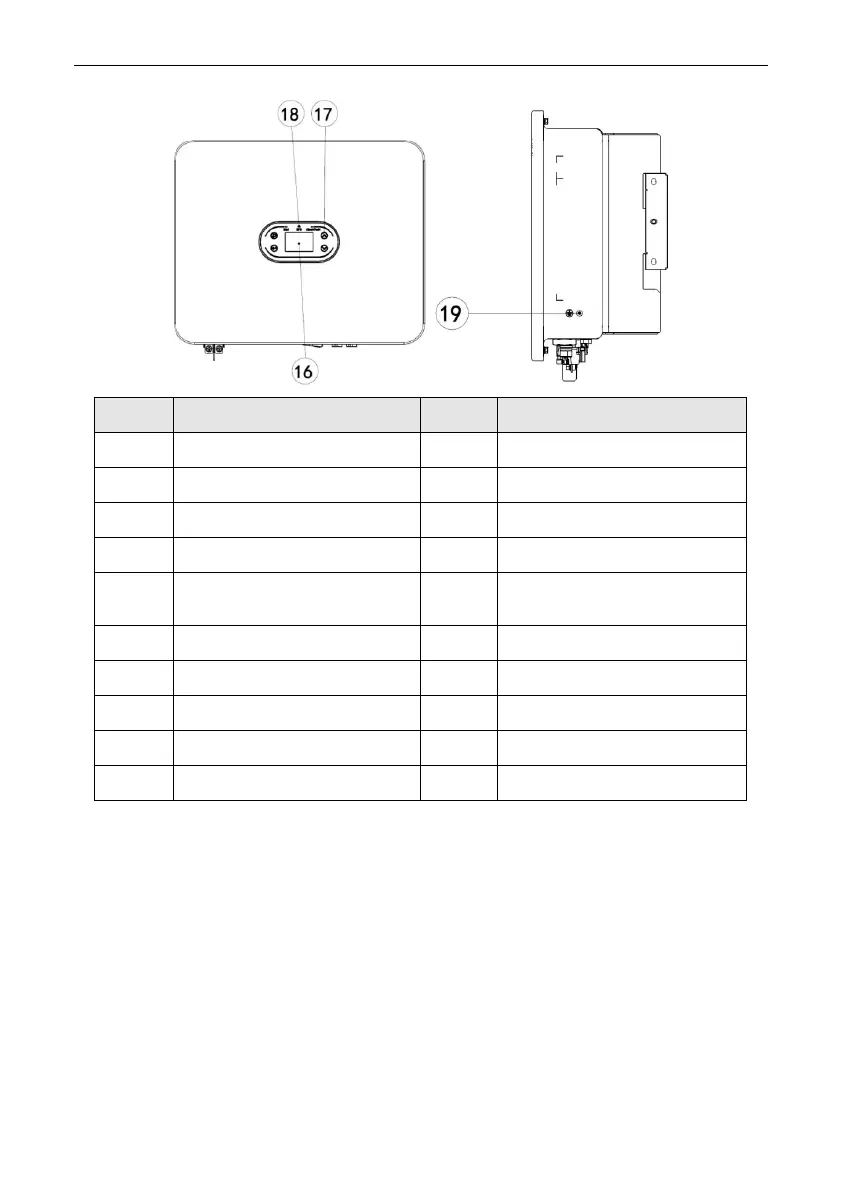

No.
Description
No.
Description
1
Battery terminal
2
RJ45 interface of DRMs (AS)
3
RJ45 interface of CT
4
Dry contact & NTC
5
CAN2 (parallel communication)
6
CAN1 (parallel communication)
7
BMS lithium battery communication
8
USB port (software upgrade)
9
COM-1 (RS485 / Wi-Fi / GPRS
communication)
10
COM-2 (smart meter / RS485
communication)
11
PV input DC switch
12
PV input terminal
13
EPS output terminal
14
Grid terminal
15
Breather valve
16
LCD screen
17
Function keys
18
LED (indicator light)
19
GND (grounding point)
3.3 Safety Instructions
1. Be sure to read this Manual before operating the product. We shall not be held liable for any failure or loss
caused by improper operation.
2. Select an appropriate battery that matches the system, and set the battery type correctly. If you select a
battery that does not match the hybrid inverter, the system cannot run.
3. If the battery has been completely discharged, please strictly follow the User Manual of the battery to
charge the battery.
4. The wiring, installation and commissioning work should be carried out by professionals.
5. During the installation process, insulated tools and personal protective equipments should be used to
ensure personal safety. To touch the electronic components of the inverter, please wear anti-static gloves, anti-static
