Single Phase Hybrid Inverter System Debugging
53
Chapter 8 System Debugging
8.1 LCD Screen and Keys
8.1.1 LCD Screen

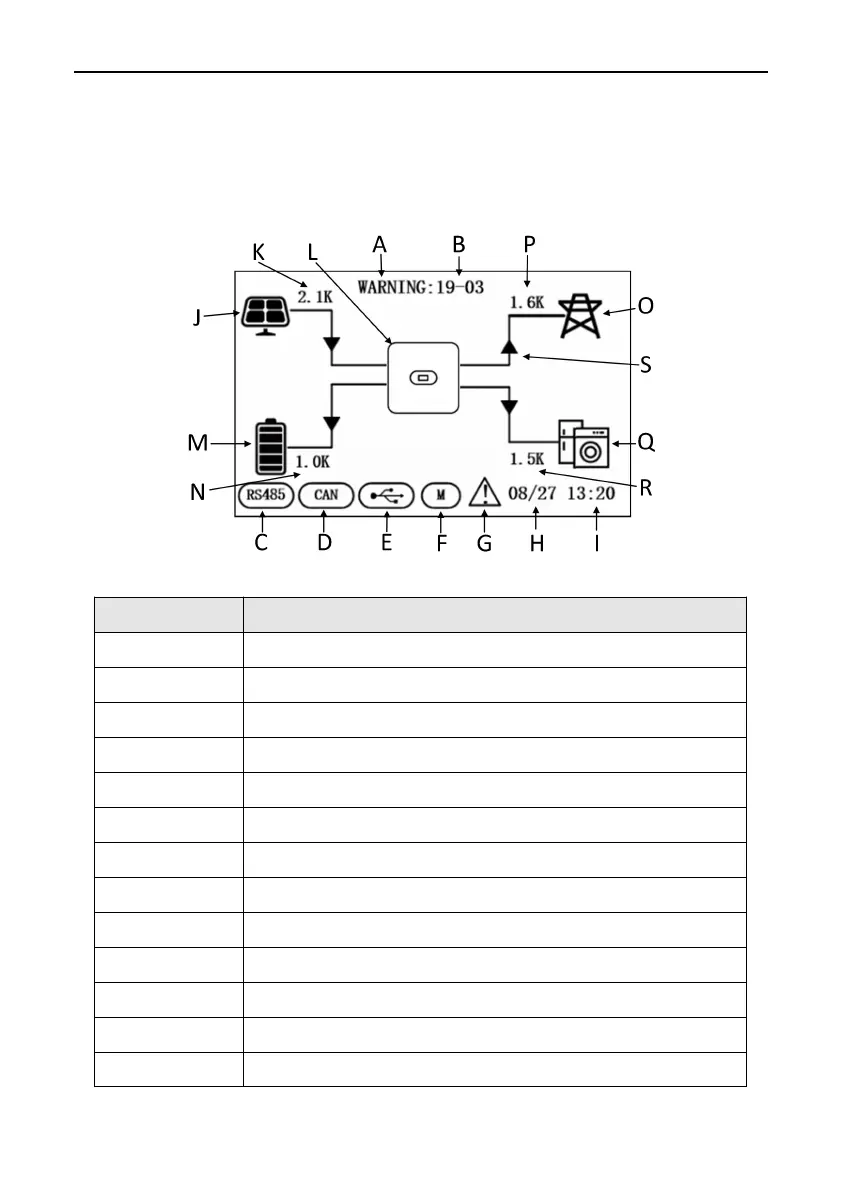

Fig. 8-1
Position
Description
A
State
B
Fault code
C
RS485 communication
D
CAN communication
E
USB
F
Smart meter
G
Fault warning
H
Date
I
Time
J
PV input
K
PV power
L
Hybrid inverter
M
Battery indicator (20% × 5 bars)
