INVT XD3TL User Manual

Single Phase Hybrid Inverter System Debugging
54
N
Battery power
O
Grid
P
Grid power
Q
Critical load
R
Load power
S
Energy flow arrow

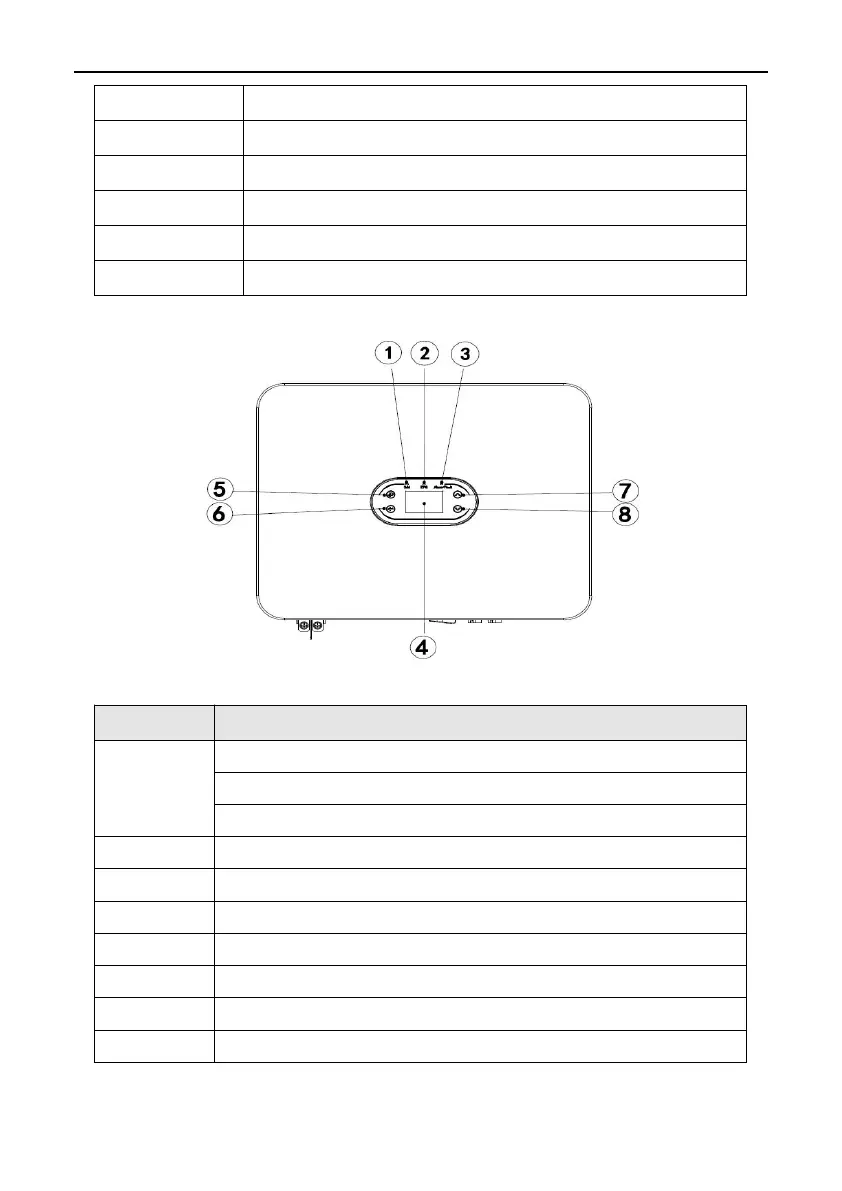

8.1.2 LEDs, Screen and Keys
Fig. 8-2
Position
Description
1
Green LED remaining on: in the on-grid state.
Green LED flashing: during the power-on self-test.
Green and yellow LED flashing: during the program burning process.
2
Yellow LED remaining on: in the off-grid state.
3
Red LED remaining on: in the fault state.
4
LCD screen
5
Return key
6
Enter key
7
Up key
8
Down key
