Single Phase Hybrid Inverter Installation
13
4.4 Dimension of Mounting Bracket

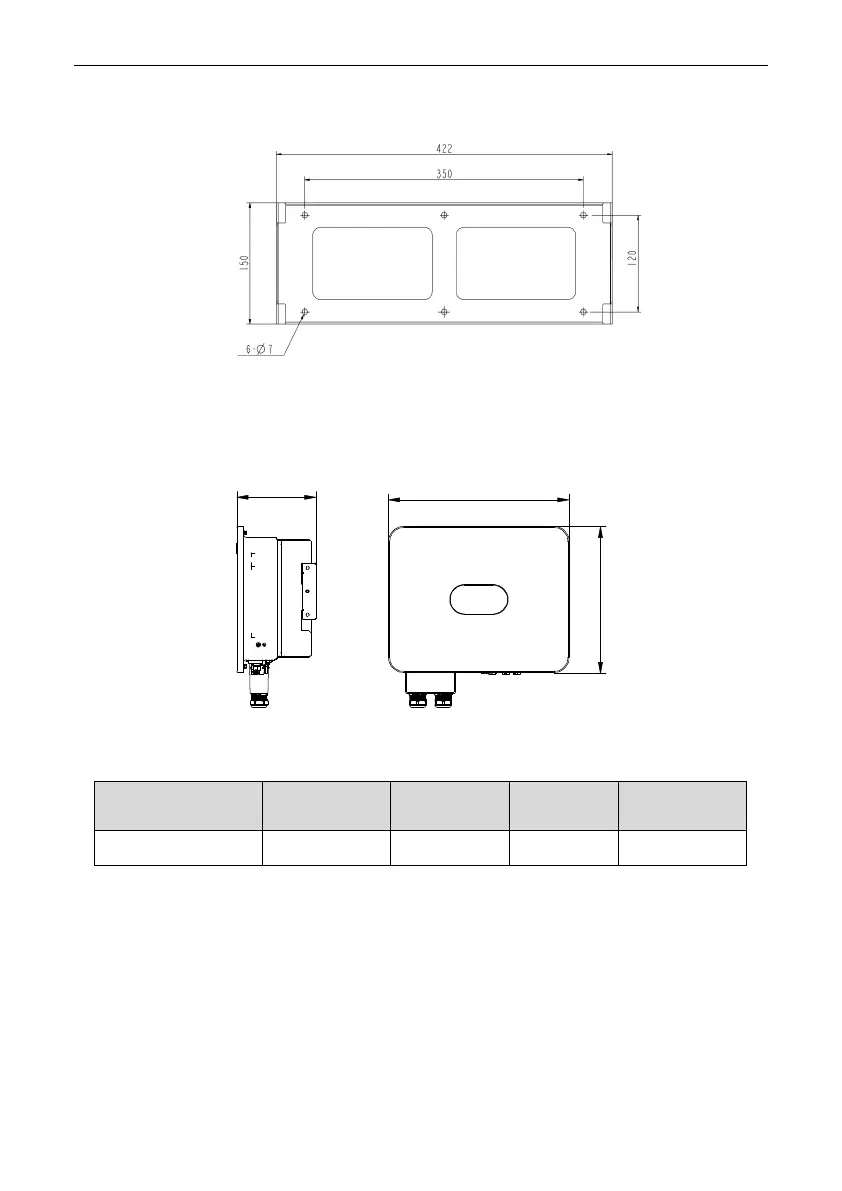

Fig. 4.7 Dimension of Mounting Bracket
4.5 Product Dimension and Weight
D
H
W
Fig. 4.8 Overall Dimension of Inverter
Dimension and net weight of hybrid inverter:
4.6 Wall Mounting
Step 1: The thickness of the wall for wall-mounted installation should be greater than or equal to 60mm.
Using a marker and a spirit level, mark the points where you need to drill the holes.
Model No.
Height (H)
(mm)
Width (W)
(mm)
Depth (D)
(mm)
Net Weight
(kg)
XD3-6KTL
390
481
200
21
