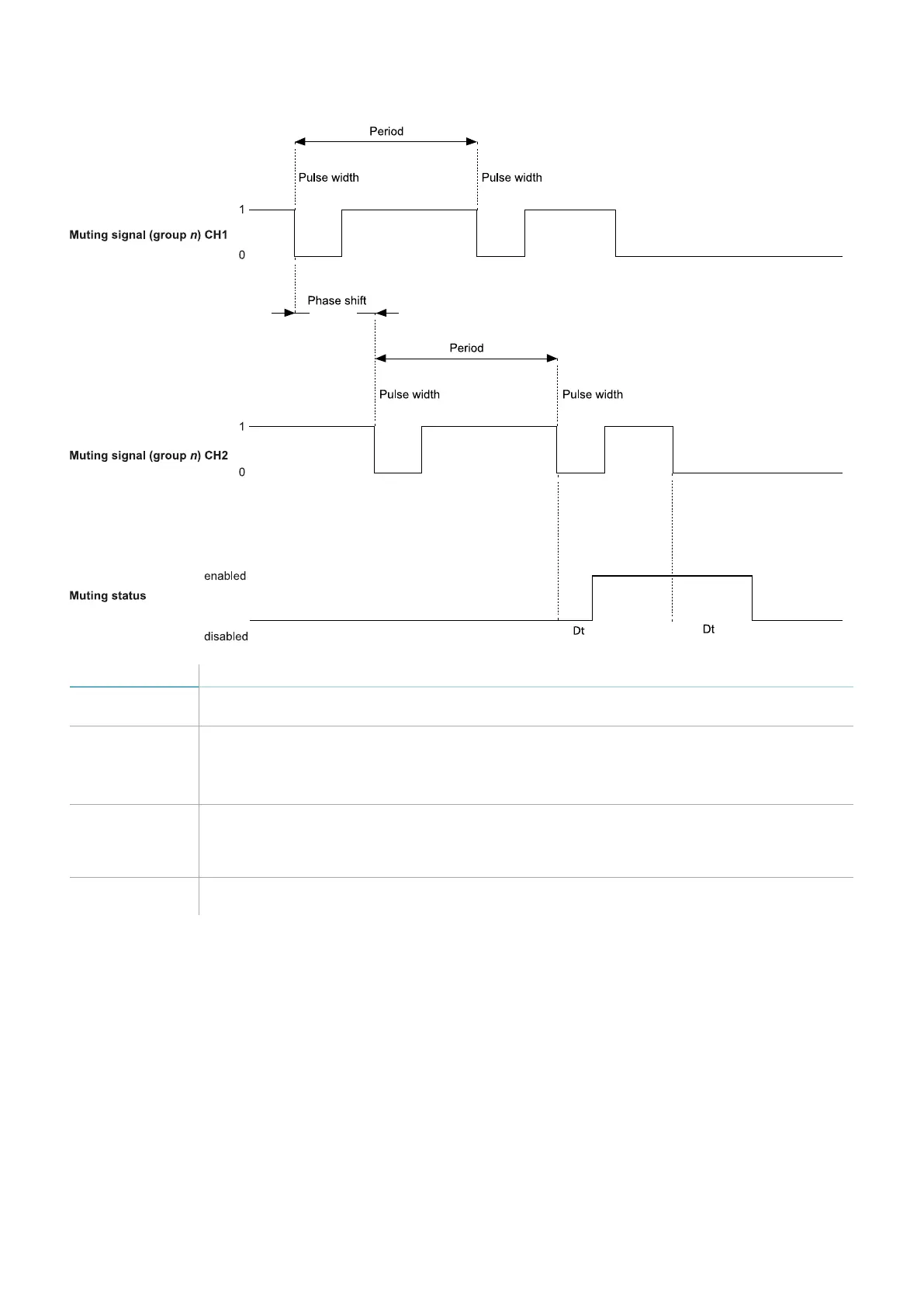

With pulse
Part Description
Diff Less than 100 ms. If the value is greater than 100 ms, the diagnostic alarm starts and the
system deactivates the safety outputs.
Muting signal
(group n) CH1
Muting signal
(group n) CH2
Interchangeable channel.
Muting status l Without pulse:enabled as long as both channels are at a high logic level (1), and
deactivated when both channels go to low logic level (0).
l With pulse:enabled as long as both the input signals follow the configured muting
parameters (pulse width, period and phase shift).
Dt Activation/deactivation delay. Without pulse less than 50 ms, with pulse less than three
times the period.
8. Technical references
LBK System Series| Instruction manual v1.2 SET 2021|SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
103
