60
LBK System Series| Instruction manual v1.2 SET 2021 |SAF-UM-LBKBus-en-v1.2|© 2020-2021 Inxpect SpA
5. Sensor position

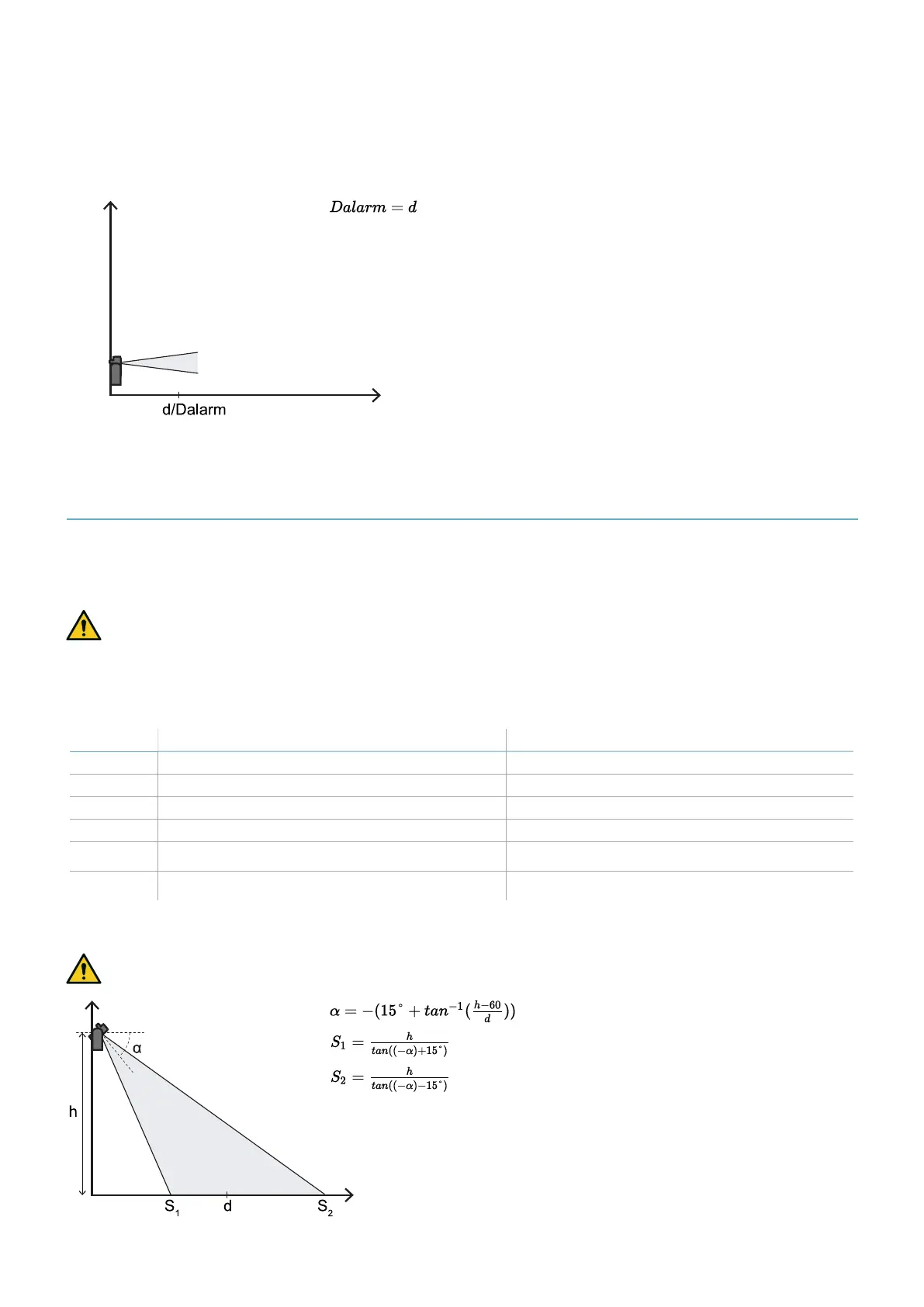

5.4.7 Calculate the real detection distance
The actual detection distance Dalarm is the value to be entered on the Configuration page of the Inxpect Safety
application.
Dalarm indicates the maximum distance between the sensor and the object to be detected.
5.5 Calculation of position for sensor height > 1 m
5.5.1 Introduction
The formulas for calculating the optimum position of the sensor for sensors with installation heights greater than
1 m (3.3 ft) are reported as follows.
WARNING! Define the optimum sensor position according to the risk assessment requirements.
Note: the sensor inclination can only be downwards (α negative).
5.5.2 Legend
Element Description Measurement unit
α Sensor inclination degrees
h Sensor installation height cm
d Detection distance (linear) cm
Dalarm Detection distance (real) cm
S
1
Start detection distance cm
S
2
End detection distance cm
5.5.3 110° field of view
WARNING! It is only possible to check if the other configurations respect the performance levels
required by the application through the validation procedure (see "Validate the safety functions" on
page68).
