8.3
Electrical
connections

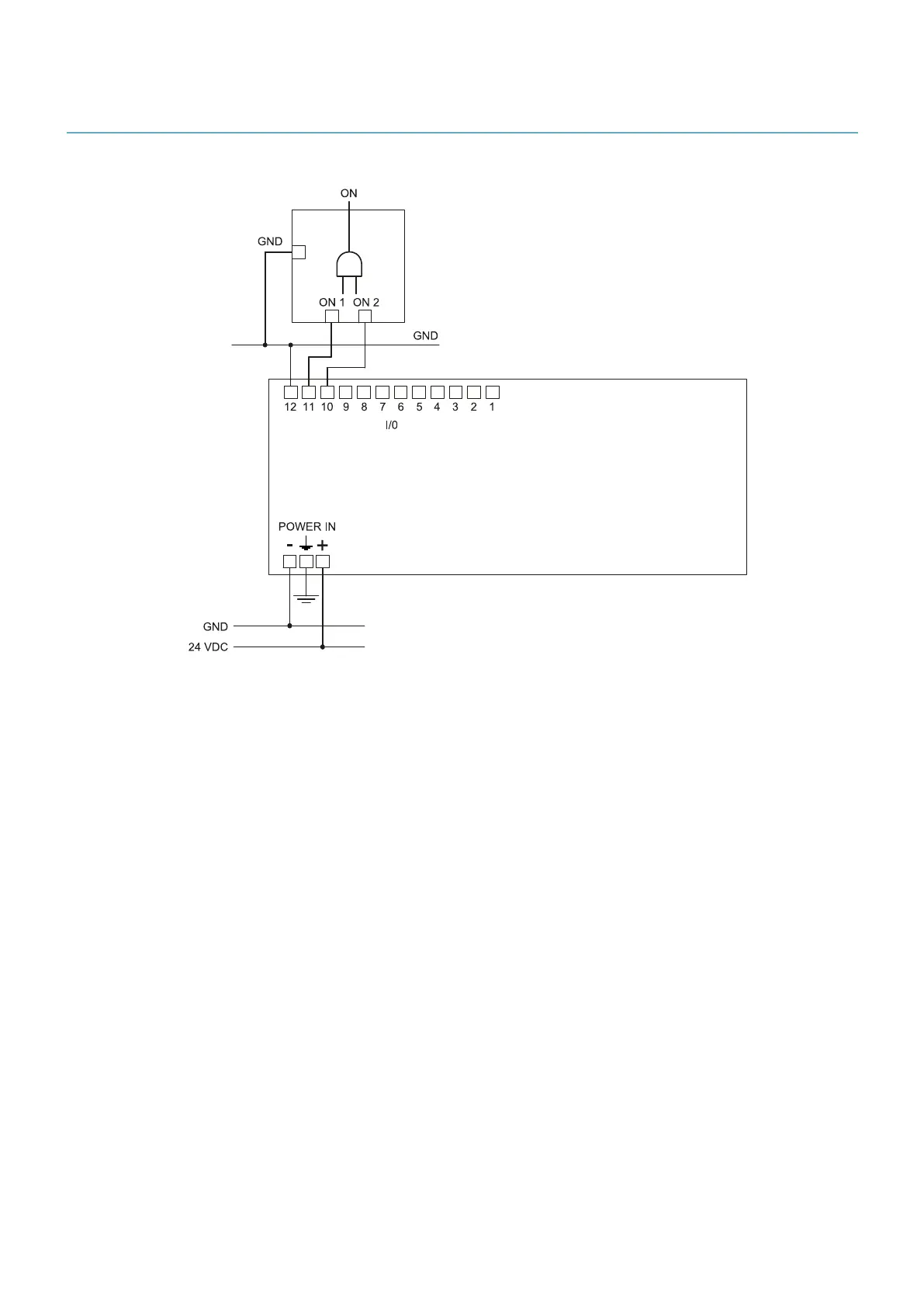

8.3.1
Connection
of
safety
outputs
to
the
machinery
control
system
Digital
I/O
settings
(through
the
Inxpect
Safety
application)
Digital input
#1 Not
configured
Digital input
#2 Not
configured
Digital output
#1 Detection
signal 1
Digital output
#2 Detection
signal 1
Digital output
#3 Not
configured
Digital output
#4 Not
configured
8.
Technical
references
LBK
System
Series
|
Instruction
manual
v1.2
SET
2021|SAF-UM-LBKBus-en-v1.2
|©
2020-2021
Inxpect
SpA
91
90
92
Table of Contents
Table of Contents
3
Glossary of Terms
4
This Manual
6
Information on this Manual
6
Safety
8
Safety Information
8
Conformity
10
National Restrictions
14
Get to Know LBK System Series
16
LBK System Series
16
LBK System Series Control Units
18
LBK-S01 Sensors
24
Inxpect Safety Application
24
Fieldbus Communication
26
Modbus Communication
27
System Configuration
28
Functioning Principles
31
Sensor Functioning Principles
31
Detection Fields
32
System Category (According to en ISO 13849)
33
Safety Working Modes and Safety Functions
35
Safety Working Mode: both (Default)
40
Safety Working Mode: Always Access Detection
41
Safety Working Mode: Always Restart Prevention
41
Features of the Restart Prevention Function
42
Muting
44
Anti-Tampering Functions: Anti-Rotation Around Axes
45
Anti-Tampering Functions: Anti-Masking
46
Multi-Control Unit Synchronization
47
Sensor Position
52
Basic Concepts
52
Sensor Field of View
53
Dangerous Area Calculation
54
Calculation of Position for Sensor Height ≤ 1 M
56
Calculation of Position for Sensor Height > 1 M
60
Outdoor Installations
61
Installation and Use Procedures
63
Before Installation
63
Install and Configure LBK System Series
64
Validate the Safety Functions
68
Manage the Configuration
71
Other Functions
72
Maintenance and Troubleshooting
73
Troubleshooting
73
Event Log Management
76
INFO Events
79
ERROR Events (Control Unit)
82
ERROR Events (Sensor)
84
ERROR Events (CAN Bus)
84
Cleaning and Spare Parts
85
Technical References
86
Technical Data
87
Terminal Blocks and Connector Pin-Outs
89
Electrical Connections
91
Parameters
99
Digital Input Signals
101
Appendix
106
System Software
106
Disposal
107
Service and Warranty
107
